Product Overview

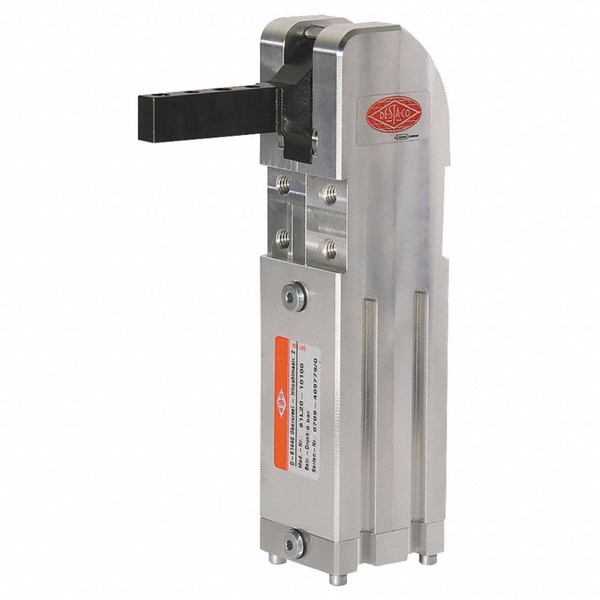

20MM ENCLOSED 81L SERIES CLAMP - 90 AR
Description
Destaco's 81L-10 Series pneumatic power clamps are designed with cylinder bore sizes ranging from 12mm - 25 mm, horizontal or vertical clamping arm styles, and sensor/mounting adaptor options.
- Compact Design
- High holding torques
- Low weight (aluminum body)
- Two mounting areas: Front and side
- Toggle action mechanism
- Models can be fitted with magnetic end sensors
Specifications
-Cylinder Bore (in) 0.79
-Clamping Arm Torque At 5 Bar (ft-lb) 13.3
-Holding Torque (Max) (ft-lb) 73.8
-Air Consumption per double stroke at 72 psi (ft³) 0.02
-Weight (lb) 1.1
-Port Size M5
-Product Series 81L
-Product Type Power Clamp
-Clamp Arm Style Center
-283-HTS_TARIFF_CODE 84798997
-Published Date 1668691606000
-Hand Lever No
-Opening Angle (deg) 120
-Product Function Clamping
-Distributor Group Workholding (Manual, Power and Hydraulic Clamps)
-Replacement Seal Kit 81L20-1-00
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
