Product Overview

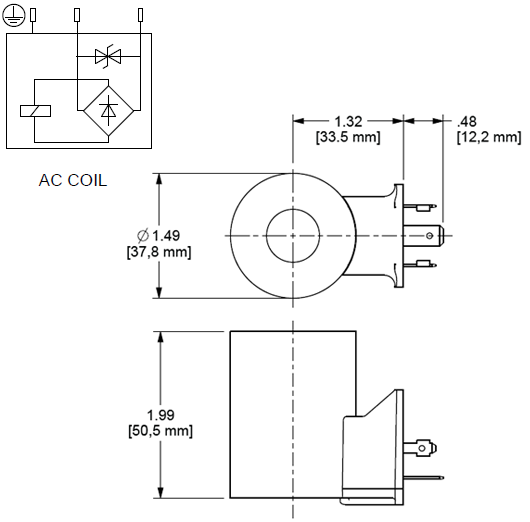

COIL 115V
Description
-Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
-Power cable with mating connector is required and is not included with the coil.
-The coil is magnetically symmetrical and can be mounted on the solenoid tube in either --direction for best cable access without affecting performance.
-Coil is fully RoHS compliant. Restricted materials less than 0.1% total by weight.
-The external steel shell is zinc-nickel plated and provides 1000-hour salt fog protection.
-Coil includes a transient voltage suppression (TVS) diode.
-IP rating for this coil is IP65/IP67.
-This coil is CE compliant. It meets the requirements of the Low Voltage Directive (2006/95/EC) and EN 60204-1:2006
Specifications
Operating Temperature Range: -40 to 230 °F
Arc Suppression (TVS) : Included
Power Consumption (cold) - at rated voltage: 25 Watts
Maximum Ambient Temperature: 122 °F
Resistance at 20º C: 416 ohms ±10%
Voltage/Frequency: 115 VAC 50/60 Hz
Operating Voltage Range: +10%/-15%
Duty Cycle Rating: 100 %
Connector: ISO4400 - EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pin
Coil Nut Torque: 4.5 lbf in.
Model Weight: 0.60 lb.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
