Product Overview
Humphrey Product
Description

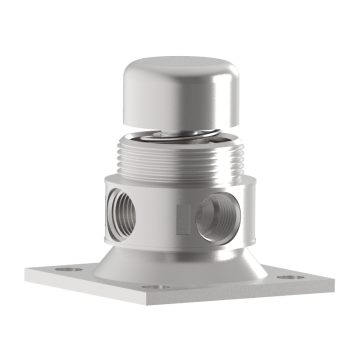

125P Series 1/8 pipe Push Button Valves feature the classic Humphrey diaphragm poppet principle.
The unbalanced, air-spring return design assures bubble-tight sealing at rest and actuated.
Compact design permits close proximity mounting to work and fast cycling/quick exhaust. Rugged 2- or 3- way valves are available normally closed or open. Standard or optional brass body suitable for inline, base or panel mounting.
Specifications
Media Air, Inert Gas
Valve Function Normally closed
Piping Type Inline, Direct piping
Port Size 1/8 NPSF
Number of Ports 3 ports
Number of Positions 2 positions
Options Included Mounting base
Approx Size (in) HxWxD 1.74 x 1.18 DIA
Type of Operation Pushbutton
Flow - SCFM @ 100 psig 22
Flow - LPM @ 6.9 bar 623
ESEOD (orifice) - in (mm) 0.129 (3.28)
Flow Coefficient (Cv) 0.30
Lubrication Not Required
Pressure Range (psi) 0-125
At Valved Pressure of:
Force to Actuate (lbs):
30 PSI 100 PSI
5 8
Ambient Temperature Range (°F) -20~225
Wetted Materials Zinc plated steel, Brass, Buna N
Weight (oz) 4.0
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
