Humphrey Product
Description

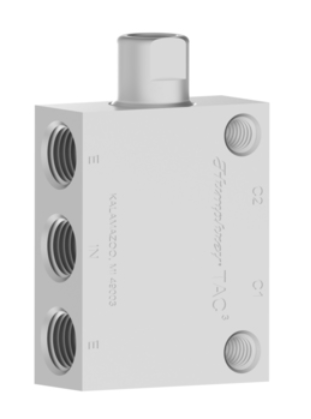

5-ported, 4-Way Air Piloted valve, spring return with 1/4 pipe ports ports and a 1/8 pipe pilot port.
Excellent choice to operate large double acting pneumatic cylinders (up to 2 bore). Compact. Rugged.
Specifications
Media Air
Valve Function 4-way, Single Air Pilot, Spring Return,
Piping Type Inline, Direct Piping
Port Size 1/4 NPSF (Pilot Port: 1/8 NPSF)
Number of Ports 5 ports
Number of Positions 2 positions
Approx Size (in) HxWxD 2.77 x 0.75 x 1.75
Type of Operation Air Pilot
Flow - SCFM @ 100 psig 31
Flow - LPM @ 6.9 bar 877
ESEOD (orifice) - in (mm) 0.167 (4.31)
Flow Coefficient (Cv) 0.52
Lubrication Recommended
Pressure Range (psi) 0-125
At Valved Pressure of: <=30 PSI, 60PSI, 90PSI, 120PSI
Recommended Pilot Pressure (psi): 30PSI;30, 60PSI; 40, 90PSI; 50, 120PSI; 60
Operating Speed (cycles/min) 900
Ambient Temperature Range (°F) -20~180
Wetted Materials Anodized aluminum, Brass, SST, Delrin, Buna N
Weight (oz) 5.0
