Humphrey Product
Description

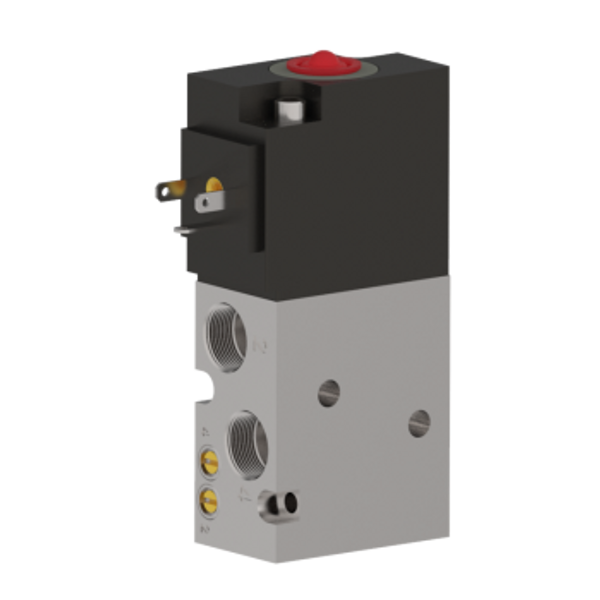

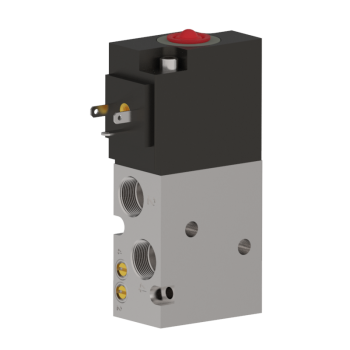

1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4 bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
Specifications
Media: Air, Inert Gas, Vacuum
Valve Function: 4-way Single Solenoid, Multi-purpose
Voltage: 24VDC
Piping Type: Stacking Body, Out Port Piping
Port Size: 1/8 NPSF
Number of Ports: 4 ports
Number of Positions: 2 positions
Coil Entry Orientation: Standard
Size (in) HxWxD: 2.75 x 0.75 x 1.25
Options Included: EXH port speed control
Type of Operation: Direct Acting Type
Flow - SCFM @ 100 psig 10
Flow - LPM @ 6.9 bar 283
ESEOD (orifice) - in (mm) 0.088 (2.34)
Flow Coefficient (Cv) 0.14
Lubrication Not Required
Pressure Range (psi) -28Hg-125
Response Time per Step (ms) 12/10
Maximum Duty Cycle 600 CPM
Features
Ambient Temperature Range (°F) 32~125
Wetted Materials Anodized Aluminum, Brass, SST, Buna N, Acetal
Weight (oz) 4.0
Electrical Entry DIN style, Micro Type C (9.4mm)
Voltage Range +10%, -15%
Power Consumption (w) 4.5
Manual Override Non-Locking
Compliance RoHS
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
