RELIEF
Description

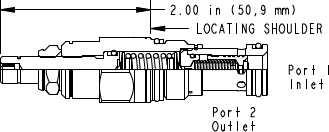

Pilot-Operated, Balanced Piston Relief Valve
Specifications
Cavity T-10A
Series 1
Capacity 25 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.@1000 psi
Response Time - Typical 10 ms
Adjustment - No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.31 lb.
Seal kit - Cartridge Buna: 990010007
Seal kit - Cartridge EPDM: 990010014
Seal kit - Cartridge Polyurethane: 990010002
Seal kit - Cartridge Viton: 990010006
Features
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
