Cartridge
Description
Pilot-Operated, Pressure Reducing Valve
Specifications

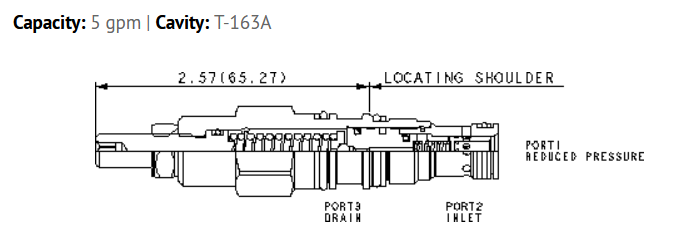

Cavity T-163A
Series 0
Capacity 5 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at blocked control port (dead headed)
Control Pilot Flow 7 - 10 in³/min.
Adjustment - No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 3/4 in.
Valve Installation Torque 20 - 25 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 1/2 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 0.25 lb.
Seal kit - Cartridge Buna: 990163007
Seal kit - Cartridge Polyurethane: 990163002
Seal kit - Cartridge Viton: 990163006
Features
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
Minimum setting is 75 psi (5 bar) for all spring ranges.
Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
Recommended maximum inlet pressure is determined by the adjustment range. Ranges A, B, N, and Q are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Range W is tested with 5000 psi (350 bar) of inlet pressure.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
