Product Overview

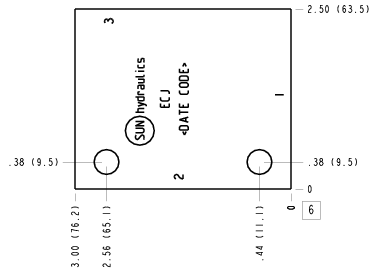

Manifold
Description
Modifiers Ports
ECJ, /10, /11, /S, /S3 Ports 1 & 2: SAE 8; Port 3: SAE 6;
Ninety Degree
Specifications
Body Type Line mount
Interface None
Body Features Ninety degree
Mounting Hole Diameter .34 in.
Mounting Hole Depth Through
Mounting Hole Quantity 2
Open Cavities 1
Cavity T-11A
Port Size SAE 8
Model Weight 0.71 lb.
Features
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
