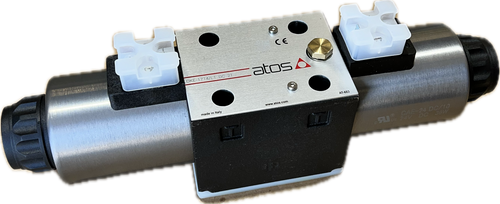

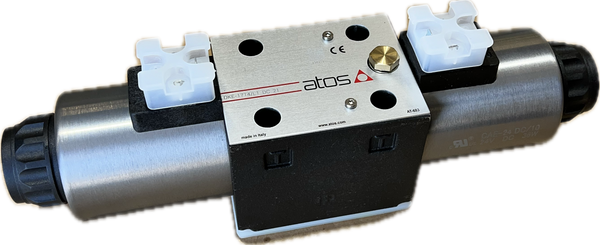

DKE-1713-X 24DC (Directional Valve D05 39GPM 5000PSI)

(No reviews yet) Write a Review
$456.78
SKU:
DKE-1713-X 24DC
Data Sheet:
View Data Sheet

Product Overview

Directional Valve D05 39GPM 5000PSI

Description

Spool type, two or three position direct operated valves with threaded solenoids certified according the North American standard cURus.
Solenoids are made by:
• wet type screwed tube, different for AC and DC power supply, with integrated manual override pin
• interchangeable coils, specific for AC or DC power supply, easily replaceable without tools

Specifications

Mounting surface: ISO 4401 size 10
Max flow: 150 l/min
Max pressure: 350 bar

Features

Standard coils protection IP65, optional coils with IP67 AMP Junior Timer or lead wire connections.
The valve body is 5 chamber type for all DC versions and for AC safety version /FI and FV
Standard AC version uses 3 chamber type body.
Wide range of interchangeable spools.
The body is made by shell molding casting with wide internal passages ensuring low pressure drops.
