Product Overview

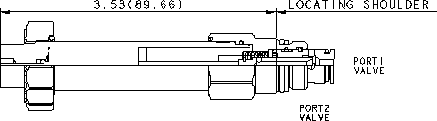

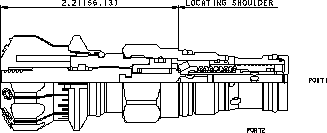

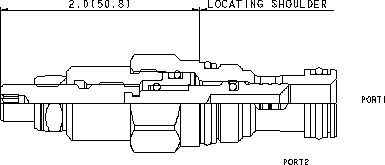

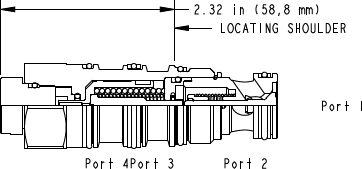

Cartridge
Description
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
Specifications
-Cavity: T-16A
-Series: 3
-Capacity: 80 gpm
-Maximum Operating Pressure: 5000 psi
-Maximum Valve Leakage at 110 SUS (24 cSt): 1 drops/min.
-Valve Hex Size: 1 1/4 in.
-Valve Installation Torque: 150 - 160 lbf ft
-Model Weight : 0.95 lb.
-Seal kit - Cartridge: Buna: 990016007
-Seal kit - Cartridge: EPDM: 990016014
-Seal kit - Cartridge: Polyurethane: 990016002
-Seal kit - Cartridge: Viton: 990016006
Features
-Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
-Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
-Will accept 5000 psi (350 bar) at ports 1 and 2.
-Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
-Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
-Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
