Product Overview

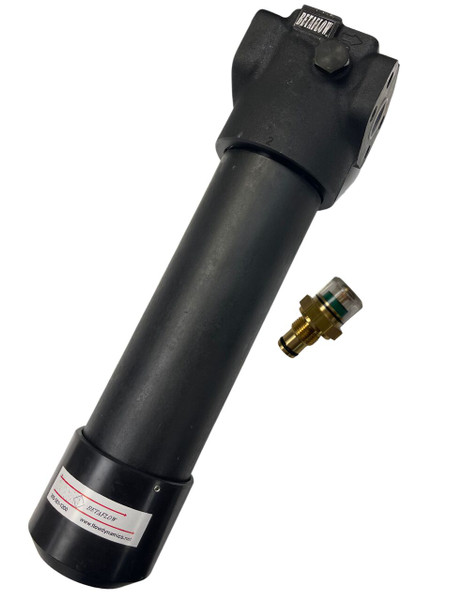

100GPM @ 6000PSI, 12UM, VISUAL
Description
BFLR4201FD03HPF
(100GPM @ 6000psi)
Specifications
Filter Specifications:
-Filter Housing Length With Indicator: 23.55in
-Clearance to Change Element: 5.5in
-F+ microfibre filter element:
ßx(c) >1000 - ISO 16889: 12 µm (c)
-Port Size: CD62 SAE 4-bolt flange: 1 1/2“
-By-Pass valve: By-pass valve with cracking pressure 88 PSI
(filter element PSH-*-R with collapse pressure 300PSI)
-Differential clogging indicator: Visual indicator, 73PSI +- 10%
Features
Replacement Elements:
(BX=1000)
-BFR30FD03HSP- 5µm
-BFR60FD03HSP- 7µm
-BFR01FD03HSP- 12µm
-BFR02FD03HSP- 22µm
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
