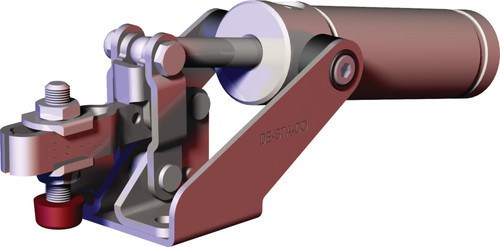

812-U MINI HOLD DOWN AIR CLAMP
Description
Pneumatic, toggle clamp version of Destaco's manual clamp model 201. Has built-in flow restrictors.
- Smallest of the pneumatic hold down series clamps.
- Double-acting pneumatic system required to operate.
- Pneumatic version of 201-U manual toggle clamp.
- Optional Sensors: 810156 or 810156. These use 810156-1 band clamp (included with sensors) to mount sensor to cylinder. Two (2) sensors required to detect both open and closed positions.
- Replacement Clamp Assembly: 812-U-LCM
Specifications
-Height Under Clamp Arm (in) 0.68
-Cylinder Bore (in) 0.75
-Clamp Arm Length (in) 1.02
-Air Consumption (ft³) 0.003
-exerting_force_lbf_english 136.0
-Maximum Holding Capacity (lbf) 100.0
-Exerting Force (lbf) 136.0
-Weight (lb) 0.46
-Clamp Arm Style u-bar
-Flanged Washers 102111
-Spindle Assembly 305208-M
-DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
-Duty Cycle Poor/Low
-PublishedDate 1673553827000
-Replacement Seal Kit 810450-40-1-00
-Product Type Pneumatic Toggle Clamp
-Spindle Included? Yes
-Air Port size M5
-Operating Temperature -23° to 74°C (-10° to 165° F)
-Product Function Clamping
-Application - Assembly Excellent/High
-Product Series 812
-Application - Welding Poor/Low
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
