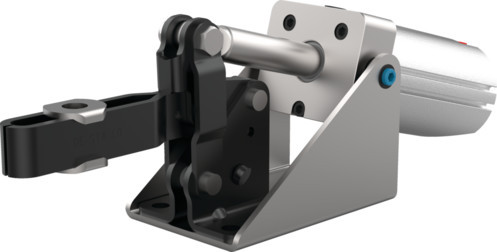

810-U HOLD-DOWN ACTION CLAMP
Description
Pneumatic, toggle clamp version of Destaco's manual clamp models 210-U and 210-S. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors. Features new composite bearings that eliminate metal-to-metal contact, thereby extending service life, while requiring no lubrication or maintenance.
- Sensor ready for round or %-slot sensors.
- Built-in flow restriction eliminates need for external flow controls.
- Pneumatic version of 210 manual toggle clamp.
- Replacement Clamp Assembly: 810-U-LC
Specifications
-Exerting Force_lbf_english: 856.0
-Maximum Holding Capacity (lbf): 600.0
-Height Under Clamp Arm (in): 1.79
-Exerting Force (lbf): 856.0
-Air Consumption (ft³): 0.029
-Cylinder Bore (in): 1.57
-Clamp Arm Length (in): 3.57
-Weight (lb): 4.07
-Air Port size: 1/8 NPT
-Product Series: 810
-Product Function: Clamping
-Flanged Washers: 235106
-Clamp Arm Style: u-bar
-Product Type: Pneumatic Toggle Clamp
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Published Date: 1675344036000
-Operating Temperature: -10° to 90°C (-14° to 194° F)
-Replacement Seal Kit: 810450-40-1-00
Features
-Application – Assembly: Excellent/High
-Duty Cycle: Fair/Medium
-Application – Welding: Fair/Medium
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
