Product Overview

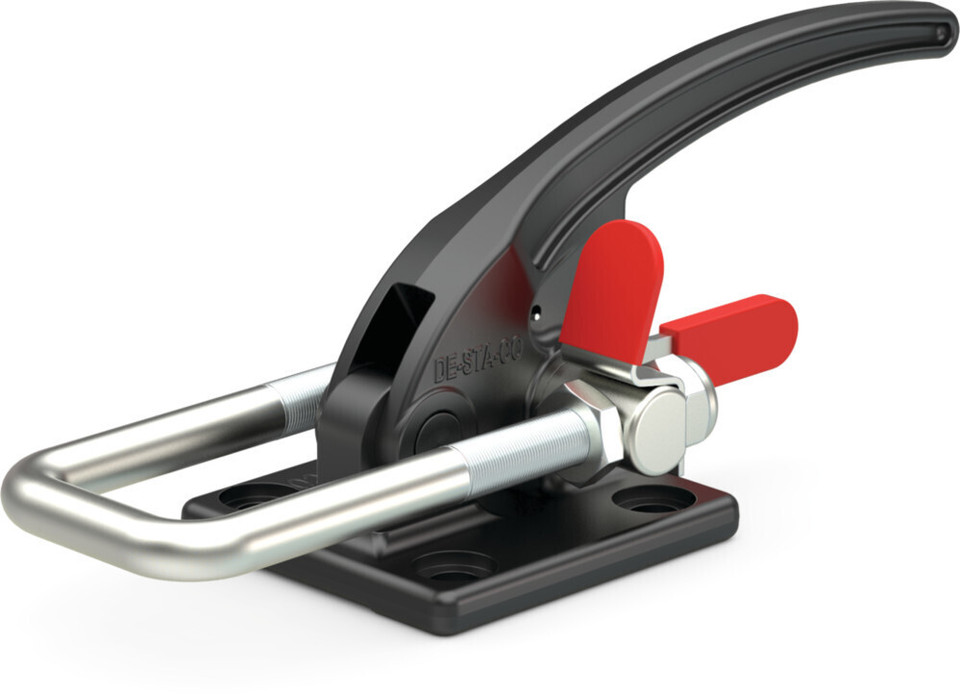

385-R W/ RELEASE LEVER
Description
Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels.
- Heavy duty.
- Patented Thumb-control lever provided one-handed operation.
- Supplied with threaded U-hooks for easy adjustment.
- With Toggle Lock Plus.
Optional latch plates and hook lengths available.
Specifications
-Max Hook Adjustment (in): 1.07
-Weight (lb): 3.4
-Drawing Movement without Thumb Control (in:) 2.31
-Maximum Holding Capacity (lbf): 7500
-Toggle Lock Plus: Yes
-Product Type: Heavy Duty
-Product Function: Clamping
-283-HTS_TARIFF_CODE: 83024900
-Base Mounting Style: Flange
-283-COUNTRY_OF_ORIGIN TH
-Standard Material: Steel
-Hook Adjustable Range: 36.1
-Product Series: 385
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Latch Plate Supplied? No
-Replacement Hook Assembly: 385104
-Latch Plate: 385102 / 375509
-Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 44:1
-Hook Typ:e U-Hook (Horizontal)
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
