Humphrey Product
Description

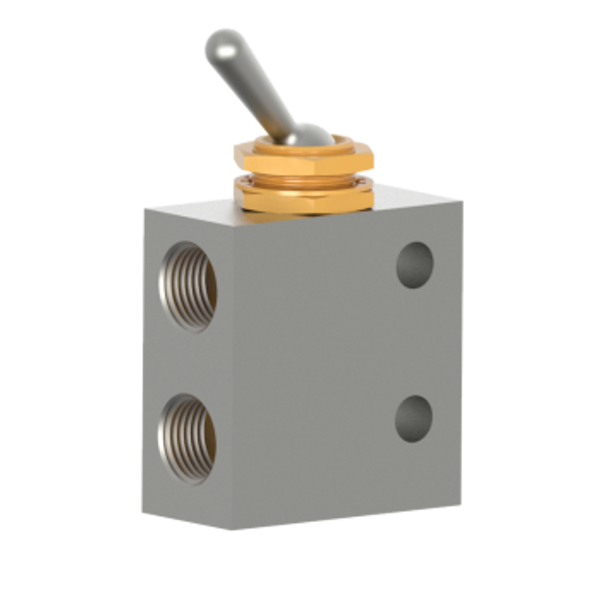

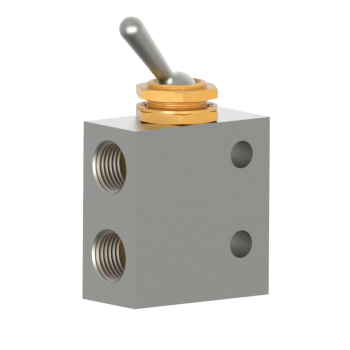

Three way miniature toggle valve, detented, with 1/8 pipe ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged.
Specifications
Media: Air
Valve Function: 3-Way, Normally Closed
Piping Type: Inline, Direct Piping
Port Size: 1/8 NPSF
Number of Ports: 3 ports
Number of Positions: 2 positions
Options Included: 15/32-32 Threaded Panel Mounting Hardware
Approx Size (in) HxWxD: 2.22 x 0.63 x 1.25
Type of Operation: Toggle
Flow - SCFM @ 100 psig: 22.5
Flow - LPM @ 6.9 bar: 637
ESEOD (orifice) - in (mm:) 0.1452 (3.69)
Flow Coefficient (Cv): 0.38
Lubrication: Recommended
Pressure Range (psi): 0-125
Ambient Temperature Range (°F): -20~180
Wetted Materials: Aluminum, Brass, SST, Buna N
Weight (oz): 4.3
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
