Product Overview

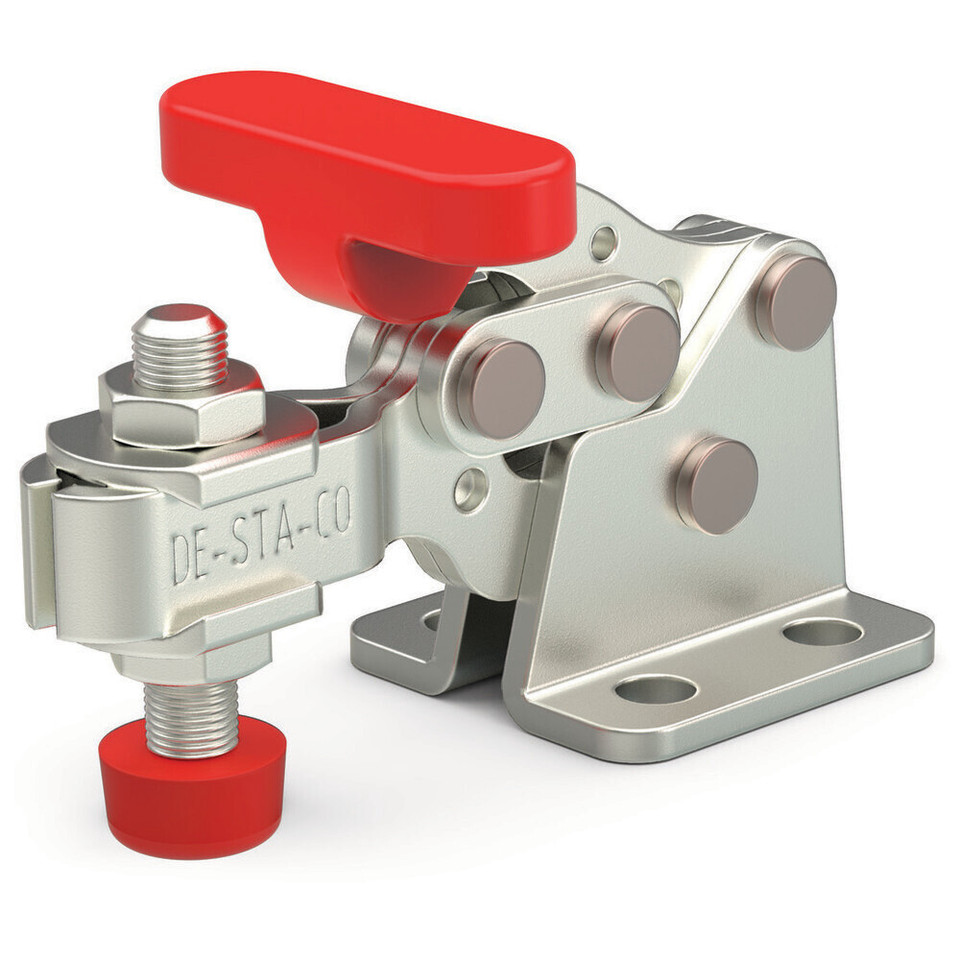

305-U CLAMP HOLD-DOWN ACTION
Description
Low silhouette hold down clamp features a handle that can be operated from either side or from behind
- Up to 150 lb (670 N) capacity.
- Supplied with neoprene spindle.
- Stainless steel models available.
Specifications
Height Under Clamp Arm (in): 0.48
-Weight (lb): 0.13
-Maximum Holding Capacity (lbf): 150
-Clamp Arm Length (in): 1.19
-Handle: Horizonal
-Accommodates Workpiece Variation: No
-Flanged Washers: 12111
-Product Series: 305/307/309
-Spindle Assembly: 305208-M
-Clamp Bar Opening (+10°) (degrees): 90
-Base Mounting Style: Flange
-Clamp Arm Style: U-Bar
-Handle Opening (+10°): 170
-Standard Material: Steel
-Product Function: Clamping
-DistributorGroup: Workholding (Manual, Power and Hydraulic Clamps)
-Toggle Lock Plus: No
-Duty Cycle: 2
Features
Application – Assembly: Excellent/High
-Product Type: Compact
-Application – Machining: Poor/Low
-Application - Wood-Working: Excellent/High
-Application - Checking Fixtures: Fair/Medium
-Service Environment: Normal
-Application – Closures: Excellent/High
-Application - Food Processing: Fair/Medium
-Application – Welding: Poor/Low
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
