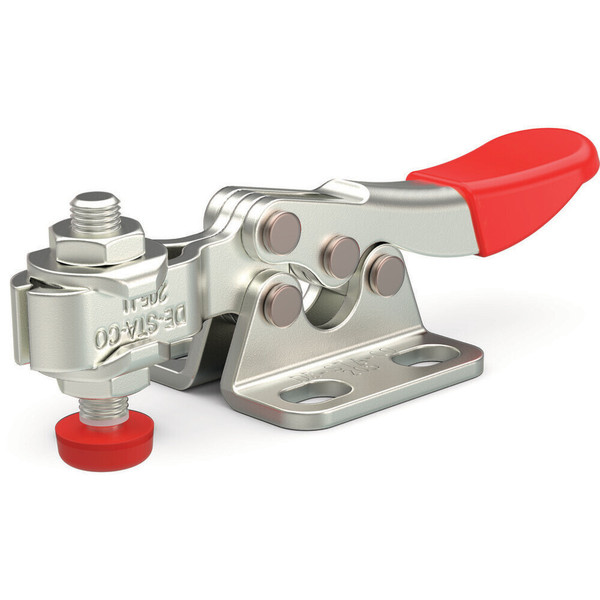

205-U (205-U CLAMP HOLD-DOWN ACTION)

(No reviews yet) Write a Review
$11.54
SKU:
205-U
Data Sheet:
View Data Sheet

Product Overview

205-U CLAMP HOLD-DOWN ACTION

Description

The smallest in our line of horizontal hold-down clamps.
- Supplied with neoprene spindle assembly.
- U-bar clamp arm.

Specifications

-Material: Steel
-Clamp Arm Length: .74 in
-Overall Height (in): .67in
-Overall Length: 2.71 in
-Cap Width (in): n/a
-Tip Material: Neoprene
-Height Under Clamp arm: .32 in
-Tip Diameter (in): .17 in
-Base Mounting Centers (in): .62 x .62 in
-Handle: 80 Degrees / Horizontal
-Weight: 0.07
-Thread Size: M4
-Package Includes: 205208-M Spindle (1), 105106 Flanged Washer (2)
-Maximum Holding Capacity (lb): 60 lb
-Handle Color:
-Product Function: Clamping
-Spindle Assembly: 205208-M
-Bolt Retainer: N/A
-Requires Articulation: Yes
-Product series: Hold Down Clamps
-Clamp Bar Opening (+10 degrees): 90 Degrees
-Duty Cycle: 2
-Handle Opening (+ 10 degrees): 80 Degrees
-Clamp Arm Style: U-Bar
-Base Mounting Style: Flange
-Flanged Washers: 105106
-Toggle Lock Plus: No

Features

-Application – Closures: Excellent/High
-Application - Food Processing: Fair/ Medium
-Application - Checking Fixtures: Excellent/High
-Accommodates Workpiece Variation: No
-Application – Machining: Poo/ Low
-Application – Welding: Poor/Low
-Application – Assembly: Excellent/High
-Application Woodworking: Excellent/High
-Product Type: Standard
-Service Environment: Normal

Terms & Conditions Apply

*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
