Product Overview

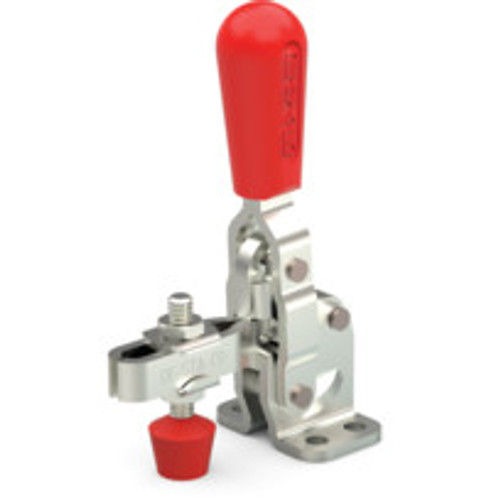

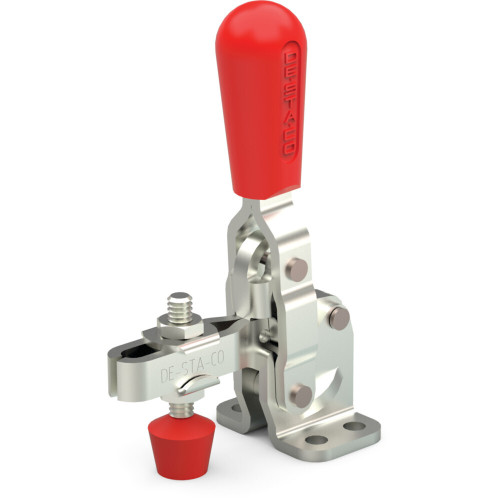

202-U WITH A LONG U BAR
Description

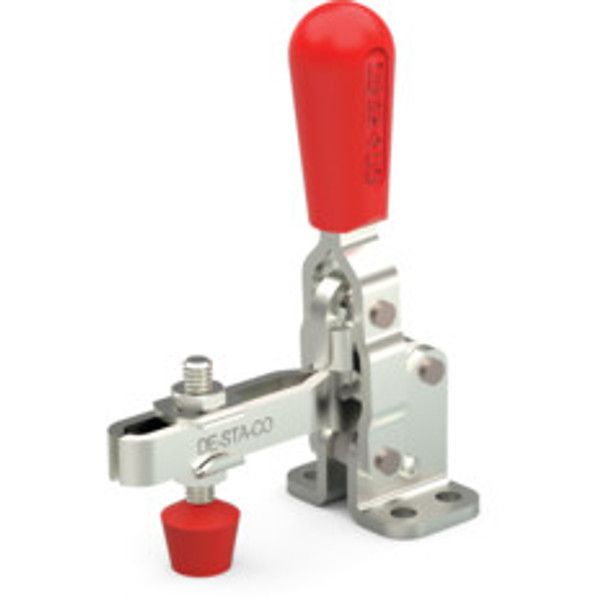

One of the most popular series in Destaco line of vertical hold-down clamps. Ideal for use in checking fixtures. Models ending in -L feature an open U-bar for attachments of arm extensions.
- Supplied with neoprene spindle.
- Ergonomic handle grip included.
Specifications
-Material: Steel
-Clamp Arm Length: 2.29 in
-Overall Height (in): 4.3125 in
-Overall Length: 2.7344 in
-Cap Width (in): N/A
-Tip Material: Neoprene
-Height Under Clamp arm: .92in
-Tip Diameter (in): .22in
-Base Mounting Centers (in): .50 x 1.06
-Handle: 65 degrees/ Vertical
-Weight: 0.35
-Thread Size: M6 x 1.73
-Package Includes: 202208-M Spindle (1), 215105 Flanged Washers (2)
-Maximum Holding Capacity (lb): 200lb
-Handle Color: Red
-Product Function: Clamping
-Spindle Assembly: 202208-M
-Bolt Retainer: N/A
-Requires Articulation: Yes
-Product series: Hold Down Clamps 202
-Clamp Bar Opening (+10 degrees): 105 Degrees
-Duty Cycle: 1
-Handle Opening (+ 10 degrees): 65 Degrees
-Clamp Arm Style: Long U-Bar
-Base Mounting Style: Flange
-Flanged Washers: 215105
-Toggle Lock Plus: No
Features
-Handle Color: Red
-Application – Closures: Excellent/High
-Application - Food Processing: Fair/ Medium
-Application - Checking Fixtures: Excellent/High
-Accommodates Workpiece Variation: No
-Application – Machining: Not Recommended
-Application – Welding: Poor/Low
-Application – Assembly: Excellent/High
-Application Woodworking: Excellent/High
-Product Type: Standard
-Service Environment: Normal
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
