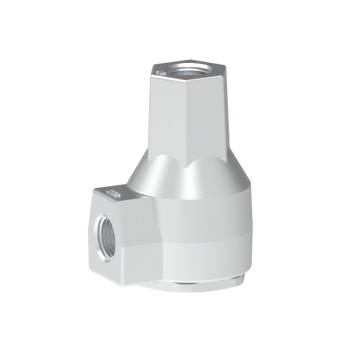

Humphrey 1/8 pipe SQE1 small quick exhaust valve is versatile. Product redirects exhausting air to its high flow 1/4 pipe exhaust port by sensing pressure differential. May be used as a shuttle valve, or achieve excellent check or flow control function with addition of plug or orifice. Compact body has high flow capacity. Molded shuttle outperforms competitive diaphragm sheet-stock types.
Specifications
Media: Air, Inert Gas
Valve Function: Quick Exhaust
Piping Type: Inline, Direct Piping
Port Size: 1/8 NPT
Number of Ports: 3 ports
Number of Positions: 2 positions
Options Included: Use as Shuttle Valve, Plug EXH port for use as Check Valve
Approx Size (in) HxWxD: 1.67 x 1.09 x 1.36
Type of Operation: Pressure Differential
Flow - SCFM @ 100 psig: 63
Flow - LPM @ 6.9 bar: 1784
ESEOD (orifice) - in (mm): 0.242 (6.15)
Flow Coefficient (Cv): 1.05
Lubrication: Not required
Pressure Range (psi): 4-150
Ambient Temperature Range (°F): -25~180
Wetted Materials: Anodized aluminum, Zinc diecast, Polyurethane
Weight (oz): 2.7

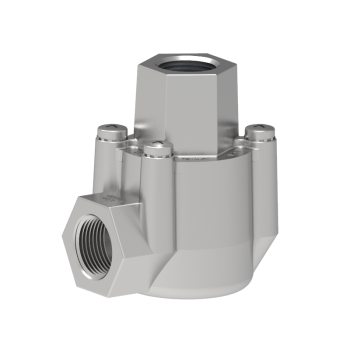

*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
