Product Overview
Humphrey Product
Description

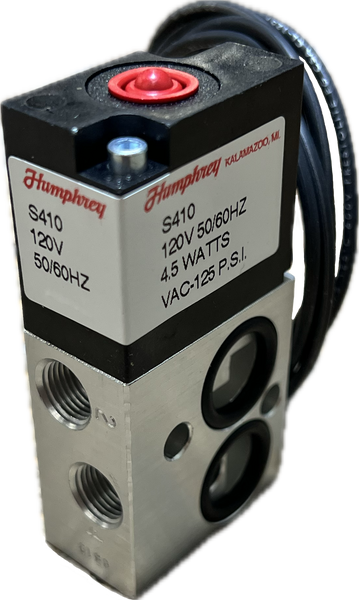

1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4 bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
Specifications
Media: Air, Inert Gas, Vacuum
Valve Function: 4-way Single Solenoid, Multi-purpose
Voltage: 120/50/60
Piping Type: Stacking Body, Out Port Piping
Port Size: 1/8 NPSF
Number of Ports: 4 ports
Number of Positions: 2 positions
Coil Entry Orientation: Standard
Size (in) HxWxD: 2.75 x 0.75 x 1.25
Type of Operation: Direct Acting Type
Flow - SCFM @ 100 psig: 10
Flow - LPM @ 6.9 bar: 283
ESEOD (orifice) - in (mm): 0.088 (2.34)
Flow Coefficient (Cv): 0.14
Lubrication: Not Required
Pressure Range (psi): -28Hg-125
Response Time per Step (ms): 12/20
Maximum Duty Cycle: 600 CPM
Ambient Temperature Range (°F): 32~125
Wetted Materials: Anodized Aluminum, Brass, SST, Buna N, Acetal
Weight (oz:) 4.0
Features
Electrical Entry: Lead Wires - 24 inches
Voltage Range: +10%, -15%
Power Consumption (w): 4.5
Manual Override: Non-Locking
Compliance: RoHS
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
