Product Overview
Cartridge
Description

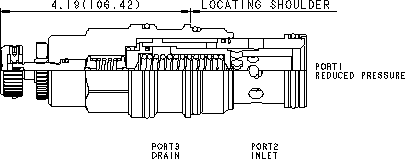

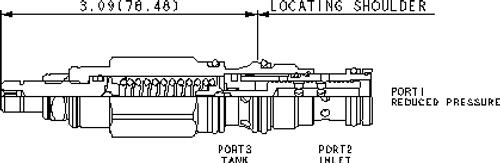

Pilot-operated, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits with multiple pressure requirements to be operated using a single pump.
Specifications
Cavity T-19A
Series 4
Capacity 80 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at blocked control port (dead headed)
Control Pilot Flow 15 - 20 in³/min.
Adjustment - No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 1 5/8 in.
Valve Installation Torque 350 - 375 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 2.95 lb.
Seal kit - Cartridge Buna: 990019007
Seal kit - Cartridge EPDM: 990019014
Seal kit - Cartridge Polyurethane: 990019002
Seal kit - Cartridge Viton: 990019006
Features
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
Main stage orifice is protected by a 150 micron stainless steel screen.
Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
