Product Overview

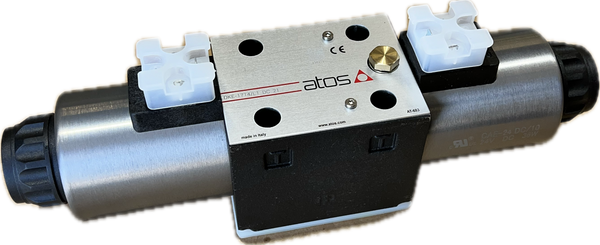

Directional Valve D05 39GPM 5000PSI
Description
Spool type, two or three position direct operated valves with threaded solenoids certified according the North American standard cURus.
Solenoids are made by:
• wet type screwed tube, different for AC and DC power supply, with integrated manual override pin
• interchangeable coils, specific for AC or DC power supply, easily replaceable without tools
Specifications
Mounting surface: ISO 4401 size 10
Max flow: 150 l/min
Max pressure: 350 bar
Features
Standard coils protection IP65, optional coils with IP67 AMP Junior Timer or lead wire connections.
The valve body is 5 chamber type for all DC versions and for AC safety version /FI and FV
Standard AC version uses 3 chamber type body.
Wide range of interchangeable spools.
The body is made by shell molding casting with wide internal passages ensuring low pressure drops.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
