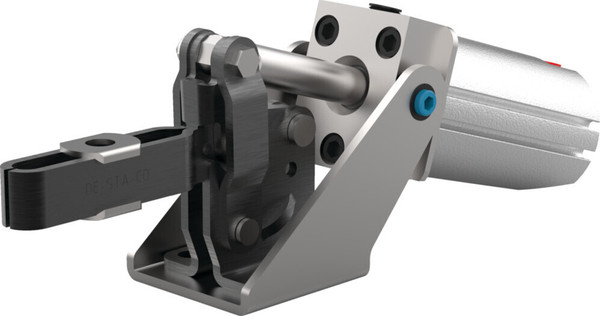

807-U PNEUMATIC TOGGLE CLAMP
Description
Pneumatic, toggle clamp version of our manual clamp models 207-U and 207-S. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors. Now features lubrication- and maintenance-free composite bearings on the trunnion mount, a redesigned clevis bolt and a reconfigured base, resulting in the elimination of any hesitation that could compromise the unit’s open/close performance.
- Sensor ready for round or T-slot sensors.
- Bult-in flow restriction eliminates need for external flow controls.
- Pneumatic version of 207 manual toggle clamp.
Supplied with flanged washers.
Replacement Clamp Assembly: 807-U-LC
Specifications
-Clamp Arm Length (in): 2.51
-Exerting Force (lbf): 576.0
-Weight (lb): 1.66
-Cylinder Bore (in): 1.26
-Air Consumption (ft³): 0.015
-Height Under Clamp Arm (in): 1.38
-exerting_force_lbf_english: 576.0
-Maximum Holding Capacity (lbf): 375.0
-Product Function: Clamping
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Replacement Seal Kit: 802450-32-1-00
-Air Port size: 1/8 NPT
-Clamp Arm Style: u-bar
-Operating Temperature: -10° to 90°C (-14° to 194° F)
-Published Date :1675434941000
-Product Series: 807
-Flanged Washers: 507107
-Port: Standard Ports
-Product Type: Pneumatic Toggle Clamp
Features
-Application – Welding: Fair/Medium
-Application - Assembly Excellent/High
-Duty Cycle: Fair/Medium
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
