Product Overview

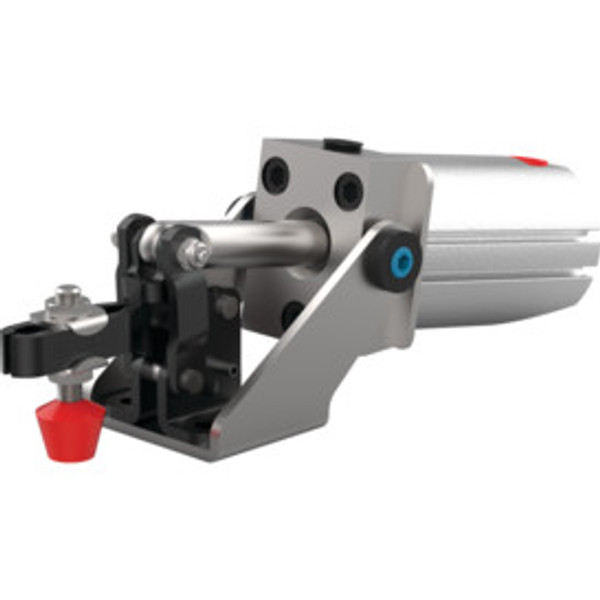

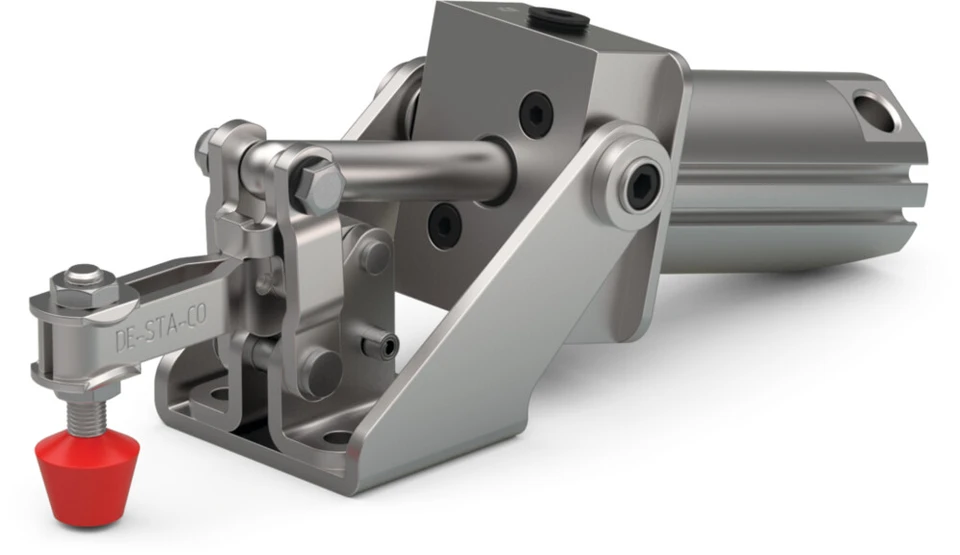

802-U PNEUMATIC TOGGLE CLAMP
Description
Pneumatic, toggle clamp version of Destaco's manual clamp model 202-U. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors. Includes an upgraded air cylinder that ensures the clamp’s exerting force is less than the maximum holding capacity when operated at normal pressure, which extends service life; new composite bearings on the trunnion mount and cylinder pivot point that eliminate metal-to-metal contact while requiring no lubrication; and a redesigned clevis bolt, along with increased rivet and pre-stop diameters that increase longevity.
- For light duty welding and assembly applications.
- Sensor ready for T-slot or round sensors.
- Pneumatic version of 202-U manual toggle clamp.
- Model 802-U has 1/8NPT ports.
- Model 802-UE has G-1/8 ports.
- Replacement Clamp Assembly: 802-U-LC
Specifications
-Weight (lb): 1.52
-Air Consumption (ft³): 0.0006
-Exerting Force (lbf): 200
-Height Under Clamp Arm (in): 1.06
-Maximum Holding Capacity (lbf): 200
-Cylinder Bore (in): 1.26
-exerting_force_lbf_english: 200
-Clamp Arm Length (in): 1.73
-Spindle Included? Yes
-Air Port size: 1/8 NPT
-Product Function: Clamping
-Clamp Arm Style: u-bar
-Product Type Pneumatic: Toggle Clamp
-Product Series: 802
-Spindle Assembly: 202208-M
-Flanged Washers: 215105
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Operating Temperature: -10° to 90°C (-14° to 194° F)
-Replacement Seal Kit: 802550-20-1-00
Features
-Application – Assembly: Excellent/High
-Application – Welding: Fair/Medium
-Duty Cycle: Poor/Low
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
