Product Overview
Humphrey Product
Description

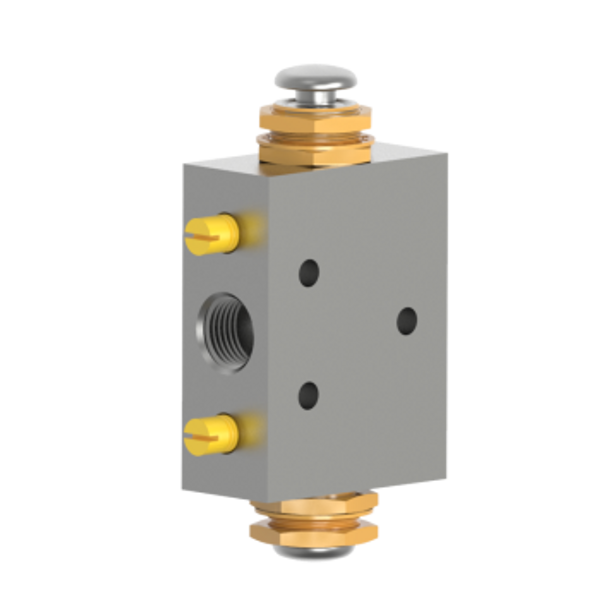

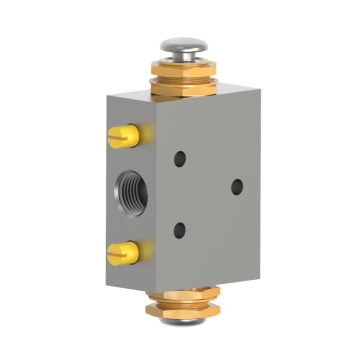

Four way miniature double Push Button valve, detented with 1/8 pipe ports.
All TAC Push Button valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar.
Feature permits panel mounting or acceptance of a variety of TAC operators. Button bottoms out on collar to prevent valve overstroke. Compact. Rugged. Exhaust metering screws included.
Specifications
Media: Air
Valve Function: 4-way, Push Button Each End, Detented
Piping Type: Inline, Direct Piping
Port Size: 1/8 NPSF
Number of Ports: 5 ports
Number of Positions: 2 positions
Options Included: Hardened Button for Manual or Mechanical use, Panel Mounting Hardware, EXH Flow Controls
Flow - SCFM @ 100 psig: 22.5
Flow - LPM @ 6.9 bar: 637
ESEOD (orifice) - in (mm): 0.145 (3.69)
Flow Coefficient (Cv): 0.38
Lubrication: Recommended
Pressure Range (psi): 0-125
At Valved Pressure of: 30 PSI 100 PSI
Force to Actuate (lbs): 3.3 4.2
Operating Speed (cycles/min): 900
Ambient Temperature Range (°F): -20~180
Wetted Materials: Aluminum, Brass, SST, Buna N
Weight (oz): 6.0
Features
Accepts Air Pilot Operators (sold separately): 341A, 341AR, 341AS, 341ASRAccepts Manual Operators (sold separately): 34F, 34TAccepts Mechanical Operators (sold separately): 34B, 34C, 34CW, 34CH
