Product Overview
Humphrey Product
Description

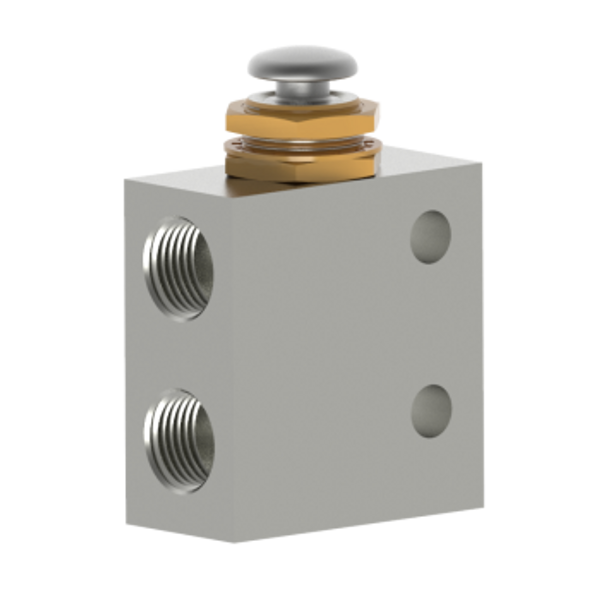

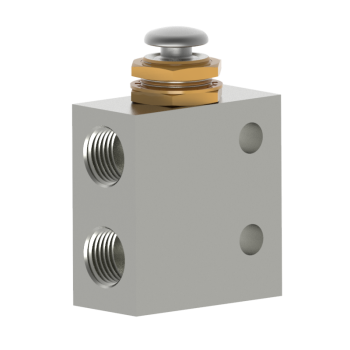

Three way miniature Push Button valve, multi-purpose, spring return with 1/8 pipe ports. All TAC Push Button valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Feature permits panel mounting or acceptance of a variety of TAC operators. Button bottoms out on collar to prevent valve overstroke. Compact. Rugged.
Specifications
Media: Air
Valve Function: 3-way, Spring Return
Piping Type: Inline, Direct Piping
Port Size: 1/8 NPSF
Number of Ports: 3 ports
Number of Positions: 2 positions
Options Included: Hardened Button for Manual or Mechanical use, Panel Mounting Hardware
Approx Size (in) HxWxD: 1.8 x 0.63 x 1.25
Type of Operation: Push button
Flow - SCFM @ 100 psig : 22.5
Flow - LPM @ 6.9 bar: 637
ESEOD (orifice) - in (mm): 0.145 (3.69)
Flow Coefficient (Cv): 0.38
Lubrication: Recommended
Pressure Range (psi): 0-125
At Valved Pressure of: 30 PSI 100 PSI
Force to Actuate (lbs): 4 5.5
Operating Speed (cycles/min): 900
Ambient Temperature Range (°F): -20~
Wetted Materials: Aluminum, Brass, SST, Buna
Weight (oz): 3.0
Features
Accepts Air Pilot Operators (sold separately): 341A, 341AR, 341AS, 341ASR
Accepts Manual Operators (sold separately): 34F, 34T
Accepts Mechanical Operators (sold separately): 34B, 34C, 34CW, 34CH
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
