Product Overview
247-U CLAMP HOLD-DOWN ACTION
Description
Heavy duty vertical hold down clamp offers bar guide feature for lateral stability.
- Hardened steel bushings.
- Larger bar guides for greater lateral stability.
- Supplied with neoprene spindle.
- Ergonomic handle grip included.
Specifications
-Maximum Holding Capacity (lbf): 1000.0
-Clamp Arm Length (in): 4.87
-Height Under Clamp Arm (in): 2.0
-Weight (lb): 2.36
-Clamp Arm Style: U-Bar
-Duty Cycle: 2
-Handle: Vertical
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Standard Material: Steel
-Spindle Assembly: 247208-M
-Handle Opening (+10°): 67.0
-Clamp Bar Opening (+10°) (degrees): 120.0
-Product Series: 247/267
-Product Function :Clamping
-Toggle Lock Plus :No
-Base Mounting Style: Flange
-Flanged Washers: 247109
Features
-Application - Checking Fixtures: Excellent/High
-Application – Assembly: Excellent/High
-Service Environment: Normal
-Application – Welding: Fair/Medium
-Application - Food Processing: Not Recommended
-Product Type: Standard
-Application – Closures: Poor/Low
-Accommodates Workpiece Variation: No
-Application – Machining: Poor/Low
-Application - Wood-Working: Fair/Medium

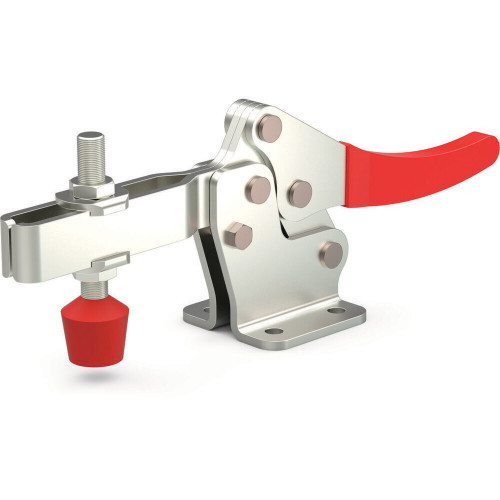

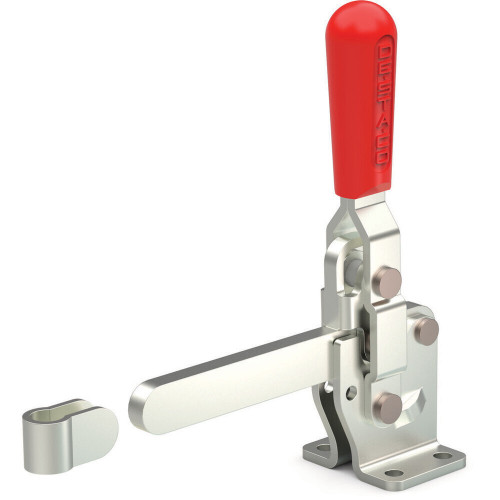

*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
