Product Overview

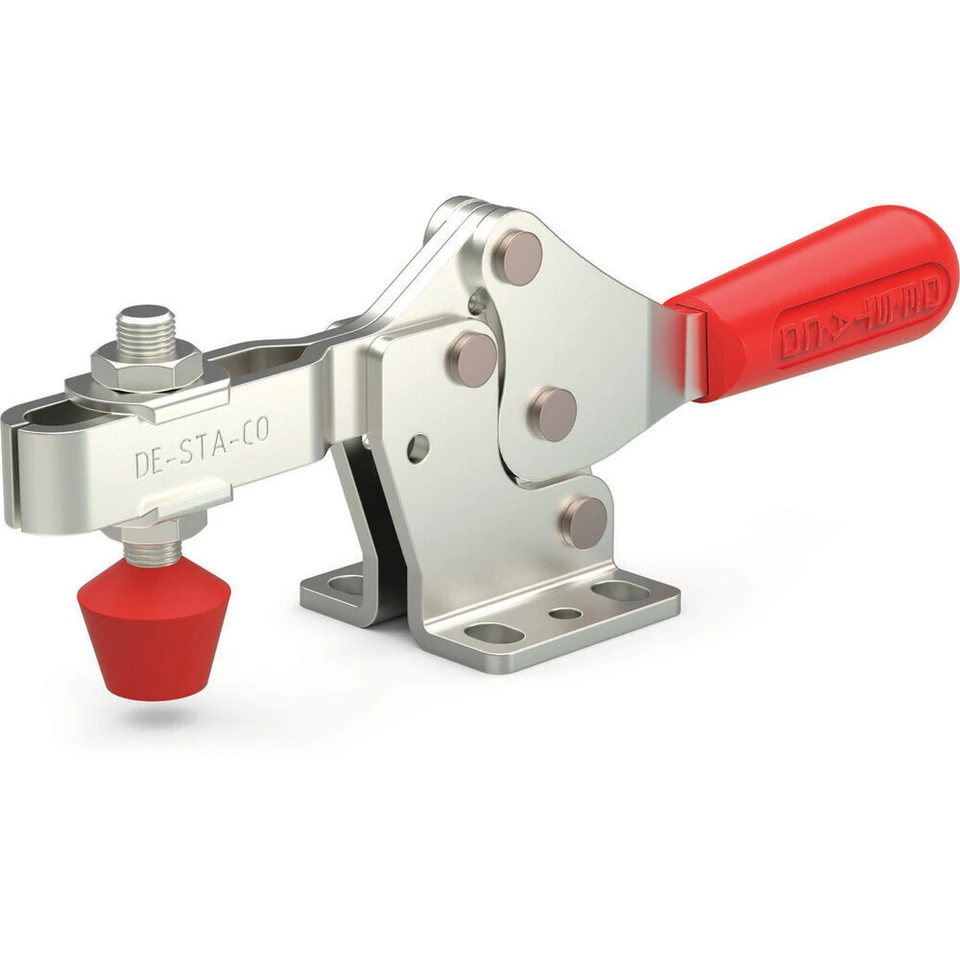

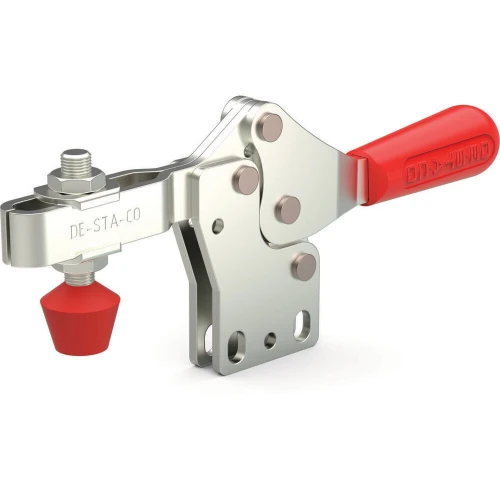

227-U CLAMP HOLD-DOWN ACTION
Description

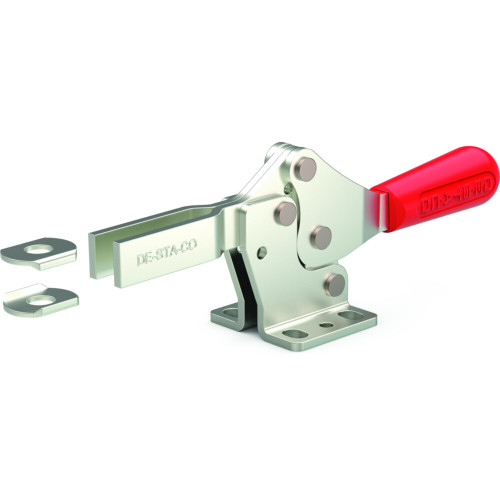

Unique design gives greater hand clearance between the bar and handle. Models ending in -L feature an open U-bar for attachments of arm extensions.
- Large handle clearance in open position.
- Clamp supplied with neoprene spindle.
- Low profile.
Specifications
-Clamp Arm Length (in): 2.65
-Weight (lb): 0.68
-Height Under Clamp Arm (in): 1.25
-Maximum Holding Capacity (lbf): 500.0
-Clamp Arm Style: U-Bar
-Handle: Horizonal
-Handle Color: Red
-Duty Cycle: 2
-Toggle Lock Plus: No
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Standard Material: Steel
-Accommodates Workpiece Variation: No
-Product Series: 227
-Spindle Assembly: 225208-M
-Product Function: Clamping
-Base Mounting Style: Flange
-Clamp Bar Opening (+10°) (degrees): 91.0
-Service Environment: Normal
-Flanged Washers: 507107
-Handle Opening (+10°): 56.0
Features
Application – Machining: Poor/Low
-Application - Checking Fixtures: Excellent/High
-Application - Food Processing: Fair/Medium
-Application – Assembly: Excellent/High
-Application – Closures: Excellent/High
-Application – Welding: Fair/Medium
-Application - Wood-Working: Excellent/High
-Service Environment: Normal
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
