Product Overview

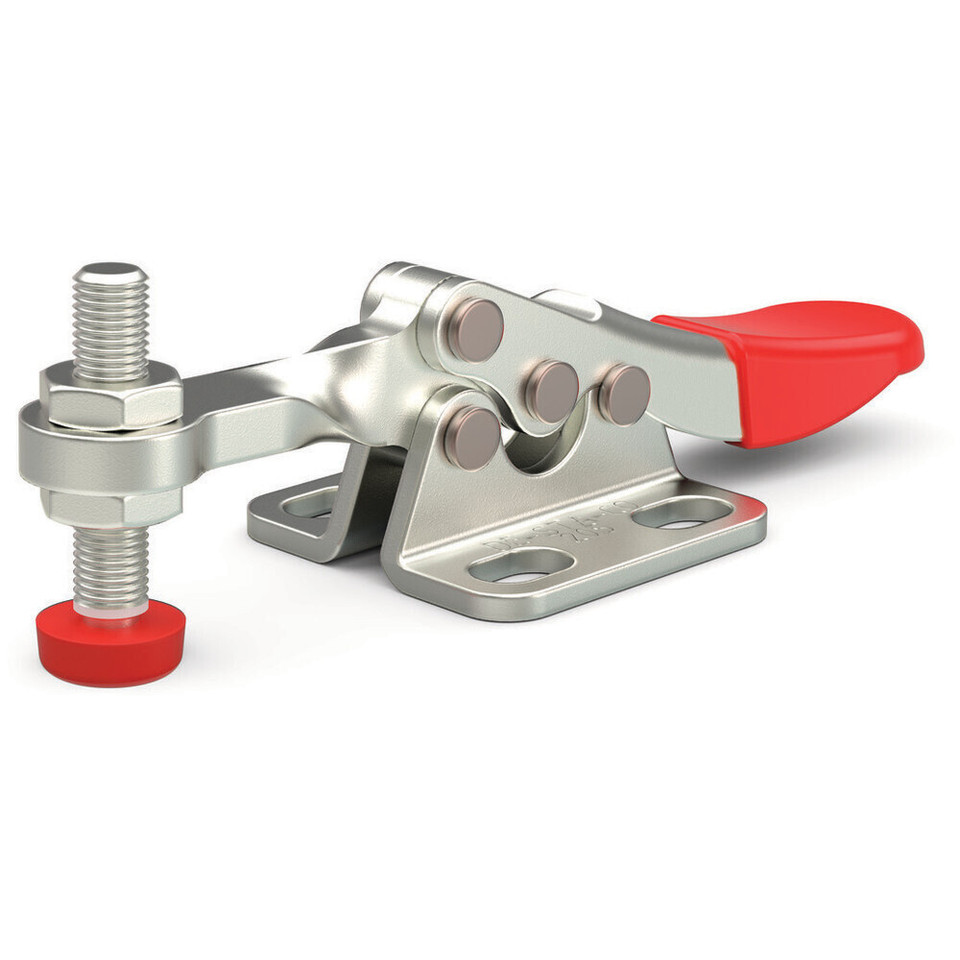

205-S CLAMP HOLD-DOWN ACTION
Description
The smallest in our line of horizontal hold-down clamps.
- Supplied with neoprene spindle assembly.
- Solid clamp arm.
Specifications
-Material: Steel
-Clamp Arm Length: .88 in
-Overall Height (in): .67in
-Overall Length: 2.85 in
-Cap Width (in): n/a
-Tip Material: Neoprene
-Height Under Clamp arm: .36 in
-Tip Diameter (in): .17 in
-Base Mounting Centers (in): .62 x .62 in
-Handle: 94 Degrees / Horizontal
-Weight: 0.07
-Thread Size: M4
-Package Includes: 205208-M Spindle (1)
-Maximum Holding Capacity (lb): 60 lb
-Handle Color:
-Product Function: Clamping
-Spindle Assembly: 202208-M
-Bolt Retainer: N/A
-Requires Articulation: Yes
-Product series: Hold Down Clamps 205
-Clamp Bar Opening (+10 degrees): 94 Degrees
-Duty Cycle: 2
-Handle Opening (+ 10 degrees): 65 Degrees
-Clamp Arm Style: Solid Bar
-Base Mounting Style: Flange
-Flanged Washers: n/a
-Toggle Lock Plus: No
Features
-Application – Closures: Excellent/High
-Application - Food Processing: Fair/ Medium
-Application - Checking Fixtures: Excellent/High
-Accommodates Workpiece Variation: No
-Application – Machining: Poo/ Low
-Application – Welding: Poor/Low
-Application – Assembly: Excellent/High
-Application Woodworking: Excellent/High
-Product Type: Standard
-Service Environment: Normal
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
