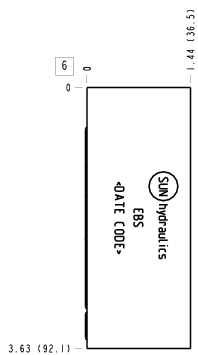

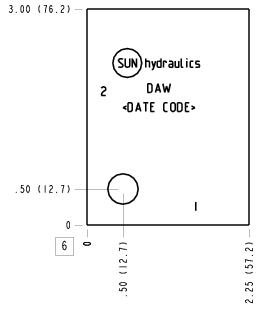

Product Overview
Manifold
Description
ISO 03: On A or B, port 3 to opposite side
Specifications
Body Type Sandwich
Interface ISO 03
Body Features On A or B, port 3 to opposite side
Stack Height 1.75 in.
Seal Plate Included Yes
Open Cavities 1
Cavity T-11A
Port Size SAE 4
Model Weight 0.84 lb.
Features
Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
