Description

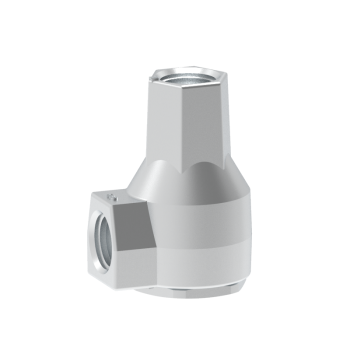

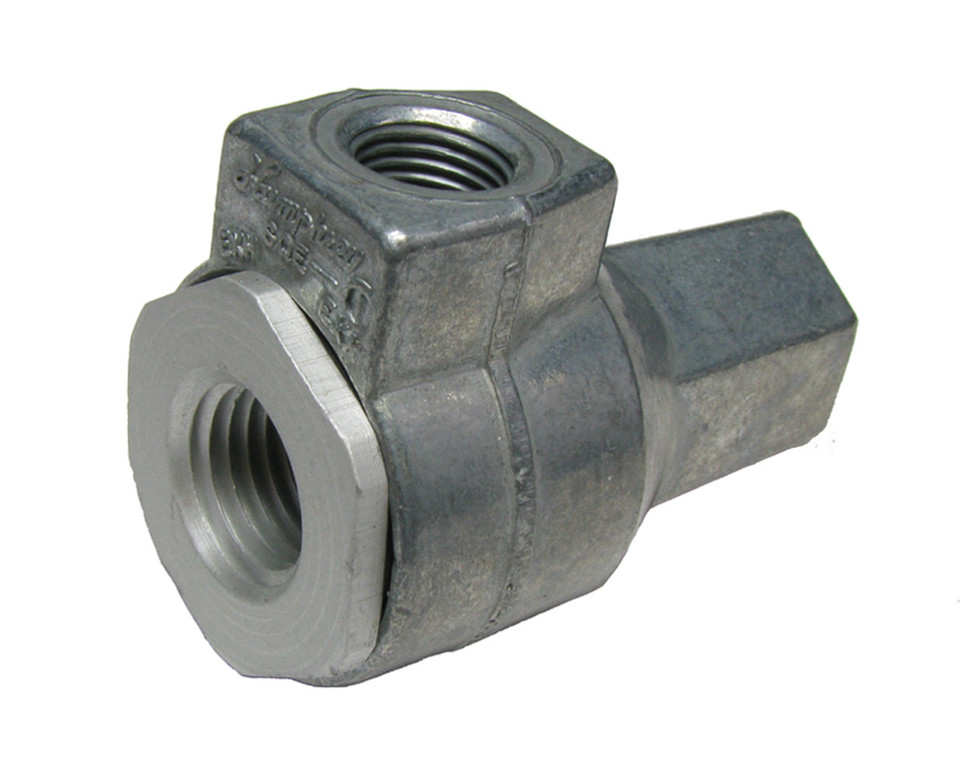

Humphrey miniature SQE 10-32 UNF quick exhaust valve is versatile. SQE redirects exhausting air to its exhaust port by sensing pressure differential, increasing cycling speeds and performance. May be used as a shuttle valve, or achieve excellent check or flow control function with addition of plug or orifice.
Specifications
Media: Air, Inert Gas
Valve Function: Quick Exhaust
Piping Type: Inline, Direct Piping
Port Size: 10-32 UNF
Number of Ports: 3 ports
Number of Positions: 2 positions
Approx Size (in) HxWxD: 0.66 x 0.38 x 0.94
Type of Operation: Pressure Differential
Flow - SCFM @ 100 psig: 7
Flow - LPM @ 6.9 bar: 198
ESEOD (orifice) - in (mm): 0.082 (2.08)
Flow Coefficient (Cv): 0.12
Lubrication: Not required
Pressure Range (psi): 3-125
Ambient Temperature Range (°F): -20~150
Wetted Materials : Brass, Buna N
Weight (oz): 0.4
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
