Product Overview
Humphrey Product
Description
Repair Kit - Accessories
The VERSA offers repair kits for many of our accessories, which can restore the part to prime operating condition in many cases.
Product Features
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
Specifications
Media: Air, Inert Gas

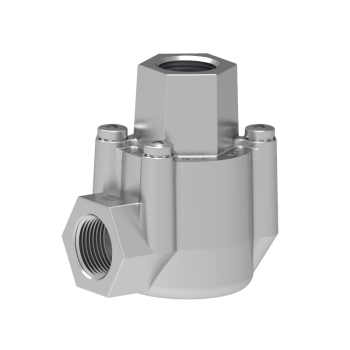

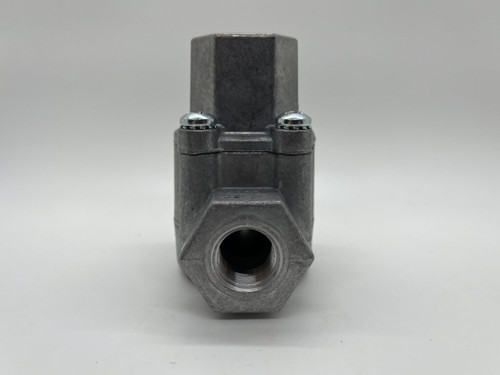

Valve Function: Quick Exhaust
Piping Type: Inline, Direct Piping
Port Size: 3/4 NPT
Number of Ports: 3 ports
Number of Positions: 2 positions
Options Included: Use as Shuttle Valve, Plug EXH port for use as Check Valve
Approx Size (in) HxWxD: 3.66 x 2.18 x 2.95
Type of Operation: Pressure Differential
Flow - SCFM @ 100 psig: 395
Flow - LPM @ 6.9 bar: 11185
ESEOD (orifice) - in (mm): 0.605 (15.37)
Flow Coefficient (Cv): 6.58
Lubrication: Not required
Pressure Range (psi): 1-150
Ambient Temperature Range (°F): -25~180
Wetted Materials: Aluminum diecast, Polyurethane
Weight (oz): 15.0
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
