Product Overview

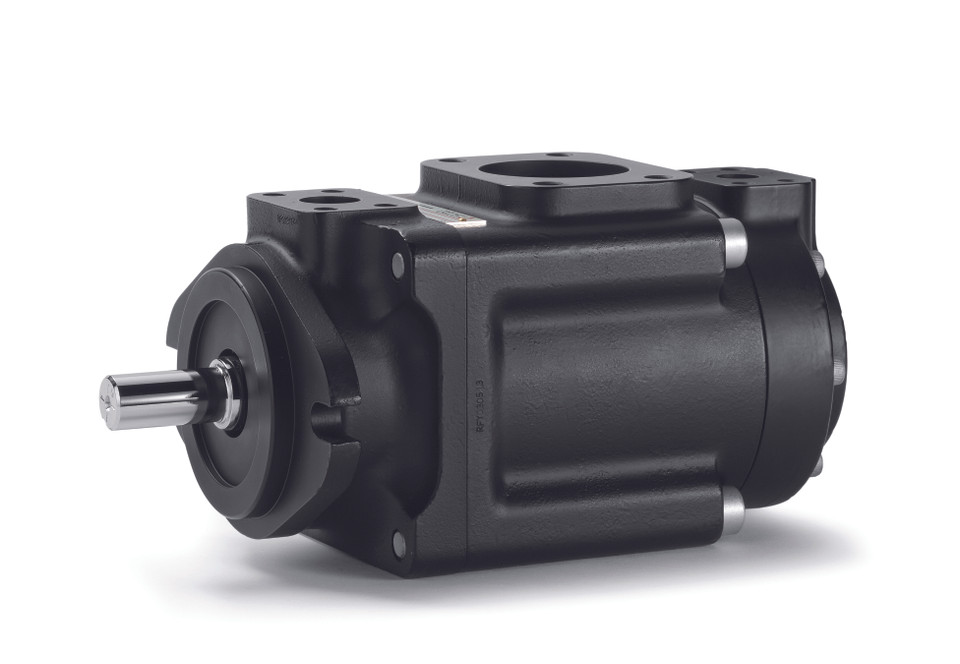

Double Vane Pump Fixed Displacement
Description
These pumps are fixed displacement double vane pumps composed by two cartridges assembled into a main body having one IN port and two independent OUT ports.
Specifications
Displacements: from 29+16 up to 150+85 cm3 /rev.
Max pressure up to 210 bar.
Features
Pumps are available with 2 body sizes:
PFED-43: SAE B mounting flange first element from 29 to 85 cc/rev second element from 16 to 44 cc/rev
FPED-54: SAE C mounting flange fist element from 90 to 150 cc/rev second element from 29 to 85 cc/rev.
They can be assembled, with fixed vane pump type PFEX-4 and PFEX-5 to obtain triple pumps PFEXD.
Easy installation as inlet and outlet ports can be assembled in any of four relative positions.
Simplified maintenance as pumping cartridge can be easily replaced.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
