Product Overview
Accessory
Description

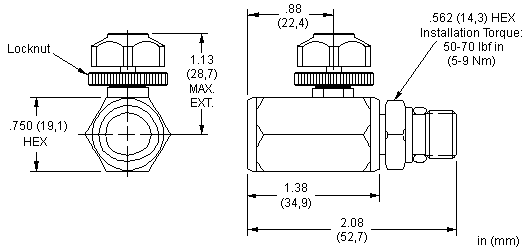

Adjustable gauge snubber, male SAE-4 to female 1/4 NPTF
SUN adjustable gage snubbers are throttling and shut-off devices used to isolate and protect hydraulic gages from line pressure transients and the resulting gage pointer pulsations.
Specifications
Maximum Operating Pressure 6000 psi
Seal Material Viton
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 3.75
Effective Orifice Size .035 in.
Port Configuration SAE 4 (Male), .250 NPTF (Female)
Material Stainless Steel
Model Weight 0.21 lb.
Features
Snubbers with a male SAE thread are adjustable allowing the knob to be pointed in any direction.
Zero leakage at shutoff.
Gage snubber backup seals are PTFE (Teflon®, product of E. I. DuPont Co.).
Material: 303 and 416 stainless. Knobs are glass-filled nylon.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
