Product Overview
Accessory
Description

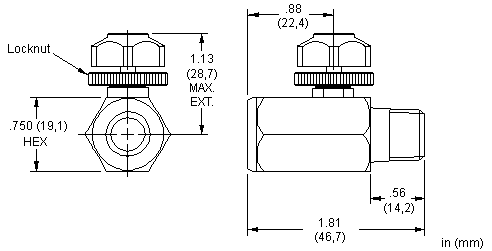

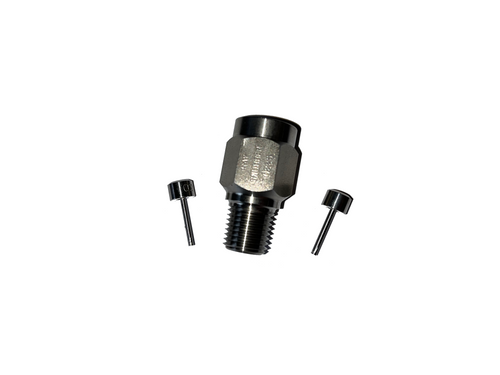

Adjustable gauge snubber, female 1/4 NPTF to female 1/4 NPTF
SUN adjustable gage snubbers are throttling and shut-off devices used to isolate and protect hydraulic gages from line pressure transients and the resulting gage pointer pulsations.
Specifications
Maximum Operating Pressure 6000 psi
Seal Material Viton
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 3.75
Effective Orifice Size .035 in.
Port Configuration .250 NPTF (Female), .250 NPTF (Female)
Material Stainless Steel
Model Weight 0.32 lb.
Features
Zero leakage at shutoff.
Gage snubber backup seals are PTFE (Teflon®, product of E. I. DuPont Co.).
Material: 303 and 416 stainless. Knobs are glass-filled nylon.
