Product Overview

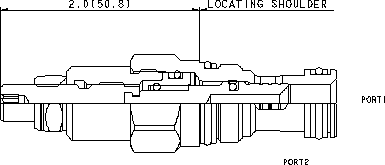

Cartridge
Description
Fully Adjustable Needle Valve
Specifications
Cavity T-16A
Series 3
Capacity 30 gpm (.38 inch)
Maximum Operating Pressure 5000 psi
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 5
Valve Hex Size 1 1/4 in.
Valve Installation Torque 150 - 160 lbf ft
Adjustment Screw Internal Hex Size 5/32 in.
Locknut Hex Size 9/16 in.
Locknut Torque 80 - 90 lbf in.
Model Weight 1.21 lb.
Seal kit - Cartridge Buna: 990016007
Seal kit - Cartridge EPDM: 990016014
Seal kit - Cartridge Polyurethane: 990016002
Seal kit - Cartridge Viton: 990016006
Features
Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
There is no leakage when the adjustment mechanism is turned to the shut-off position.
