Product Overview

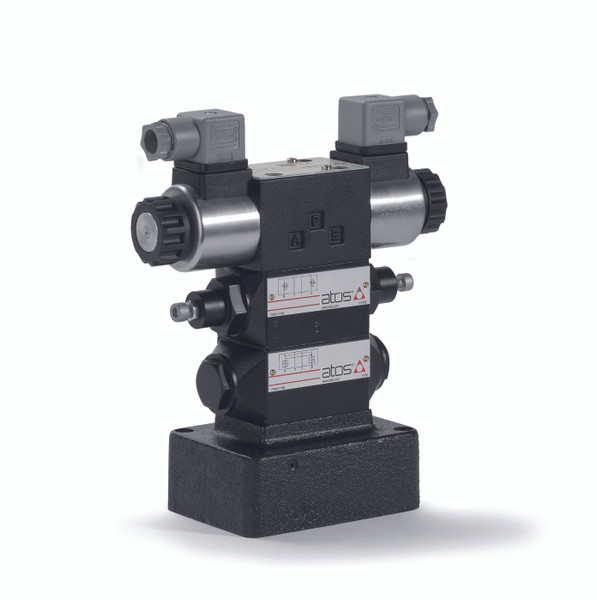

Modular Pressure Compensator
Description
HC, KC and JPC are two way pressure compensators for modular assembling with on/off and proportional directional control valves.
They keep a constant differential pressure (Dp) across port P and port A or B in order to maintain a constant flow rate against pressure variations. Automatic piloting selection is included.
Specifications
HC = size 06, flow up to 50 l/min.
KC = size 10, flow up to 100 l/min.
JPC = size 16, flow up to 200 l/min.
Mounting surface:
ISO 4401 size 06, 10, 16
Max pressure: 350 bar
Features
Fixed Dp is available only for size 06.
Adjustment of desired Dp is operated by loosening the locking nut and turning the setting screw of pilot device.
Clockwise rotation increases Dp.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
