Product Overview
Manifold
Description
ISO 08: Out of A
Specifications
Body Type Sandwich
Interface ISO 08
Body Features Out of A

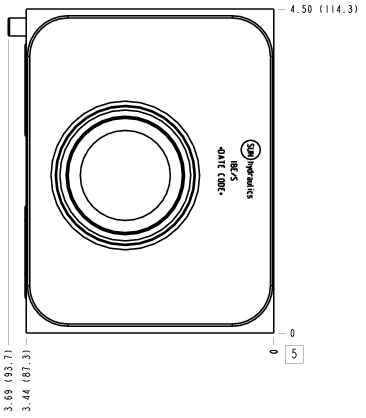

Stack Height 3.44 in.
Seal Plate Included (see notes) No
Open Cavities 1
Cavity T-18A
Model Weight 21.75 lb.
Features
Seal retainer plate is not required for this model.
For check valve application, use only with CX*A check valves - free flow nose to side.
Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
