Product Overview

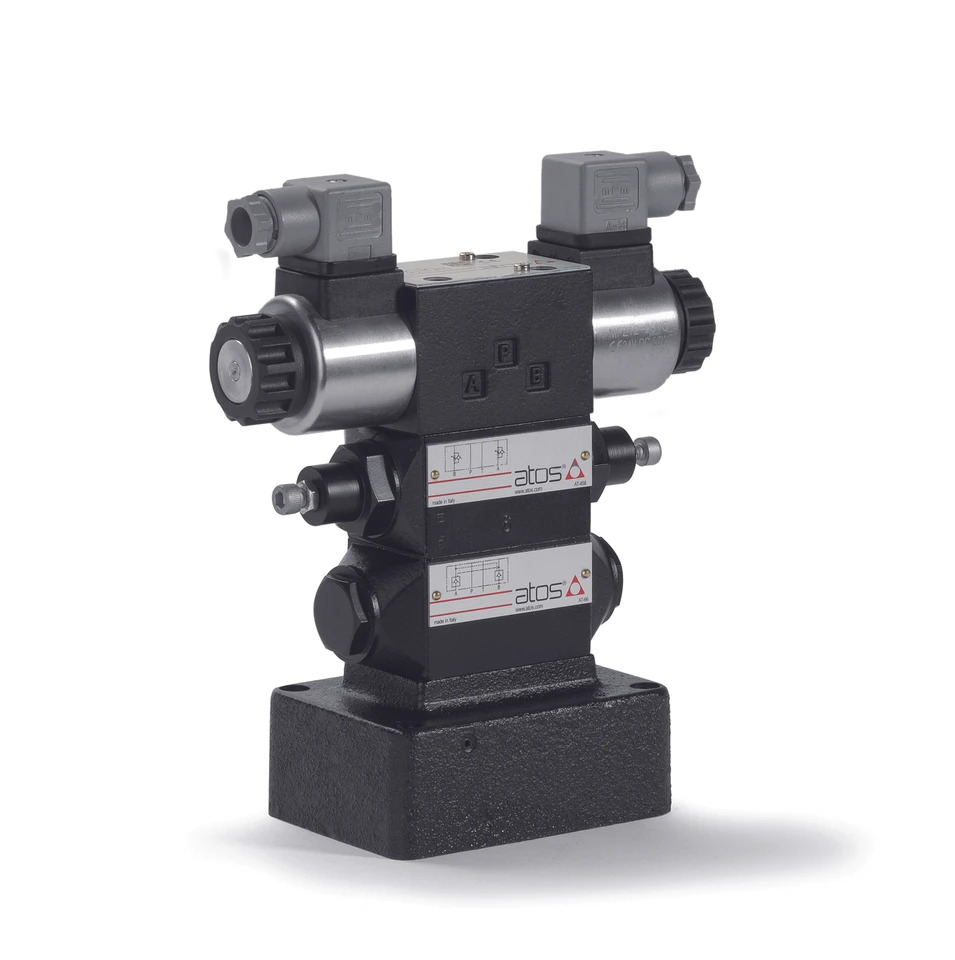

Modular Check Valve
Description
HR, KR are check valves available as direct or pilot operated models.
JPR are pilot operated check valves.
Optional versions with decompression are available on request for some models of KR.
Specifications
HR-0 = size 06: flow up to 60 l/min, pressure up to 350 bar.
KR-0 = size 10: flow up to 120 l/min, pressure up to 315 bar.
JPR-2 = size 16: flow up to 200 l/min, pressure up to 350 bar.
JPR-3 = size 25: flow up to 300 l/min, pressure up to 350 bar.
Features
Valves are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic fluid having similar lubricating characteristics
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
