Product Overview

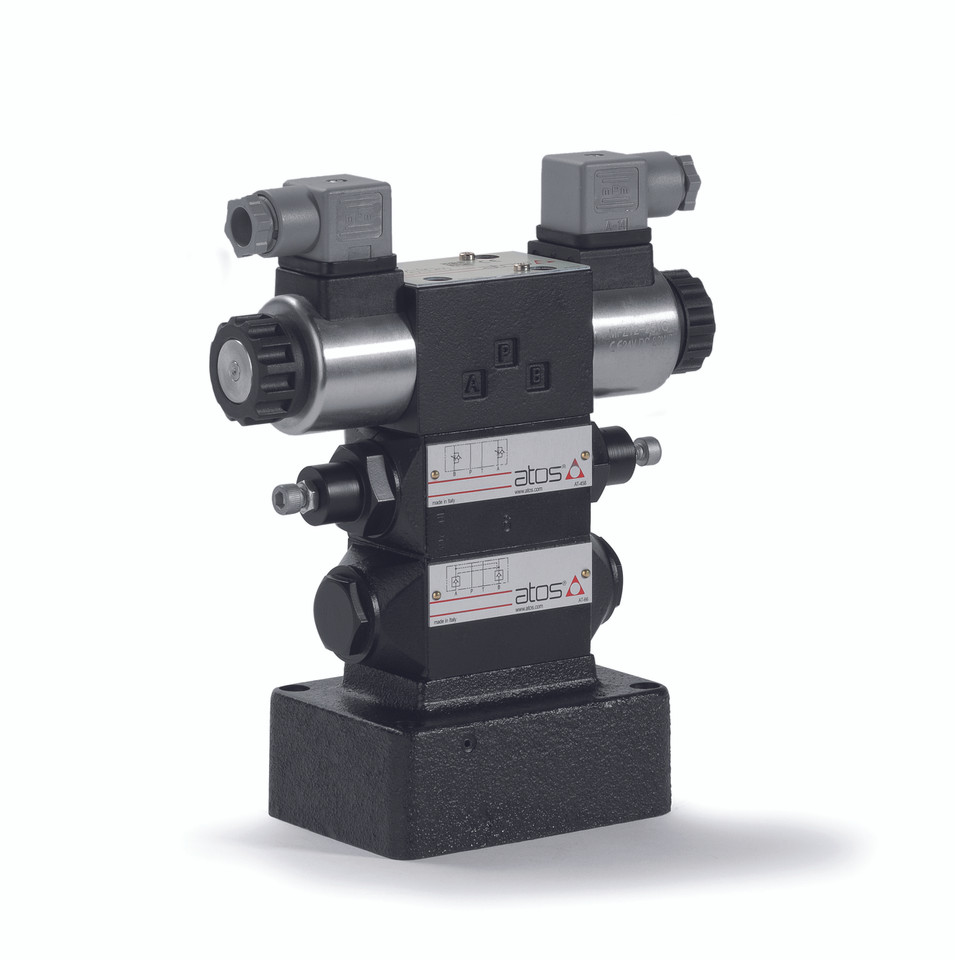

Modular Relief Valve
Description
HMP are direct operated pressure relief valves.
HM and KM are double stage pressure relief valves with balanced poppet.
Specifications
Valve size and max flow:
HMP = size 06, max flow: 35 l/min
HM = size 06, max flow: 60 l/min
KM = size 10, max flow: 120 l/min
Mounting surface: ISO 4401 size 06, 10
Max pressure: up to 350 bar
Features
The pressure adjustment is operated by loosening the locking nut and turning the screw protected by cap. Optional versions with setting adjustment by handwheel instead of the screw are available on request.
Clockwise rotation increases the pressure.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
