Product Overview

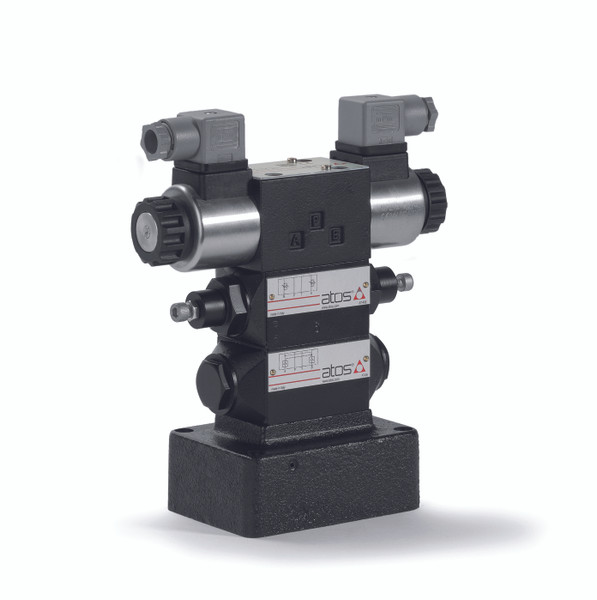

Modular Reducing Valve
Description
HG, KG, JPG are pressure reducing valves, spool type, designed to operate in oil hydraulic systems.
Specifications
Valve size and max flow:
HG = size 06 flow up to 50 l/min;
KG = size 10 flow up to 100 l/min;
JPG-2 =size 16 flow up to 250 l/min;
JPG-3 =size 25 flow up to 300 l/min;
Mounting surface:
ISO 4401 size 06, 10, 16 and 25
Max pressure: 350 bar for HG
315 bar for KG and JPG
Features
HG are direct, three way valves;
KG are double stage, three way valves;
JPG are double stage, two way valves.
Clockwise rotation increases the pressure.
