Product Overview
Manifold
Description

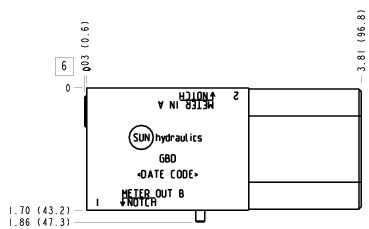

Sun's ISO 03 sandwich bodies are designed for multi-functional use to permit maximum circuit flexibility. Due to this versatility, the ISO 03 sandwich bodies do not have a counterbore for installing o-ring seals. Instead, Sun uses a special seal plate with a raised NIB and a locating NOTCH. These bodies incorporate oversize, symmetrical mounting holes to allow the bodies to be rotated about the NIB axis and the longitudinal axis to achieve the desired functionality.
Specifications
Body Type Sandwich
Interface ISO 03
Body Features Flow into or out of workport A or B
Stack Height 1.75 in.
Seal Plate Included - Yes
Open Cavities 1
Cavity T-5A
Model Weight 0.87 lb.
Features
Part Description Quantity
500-001-012 O-Ring 4
700-002 Seal Plate 1
811-001-006 Pin 1
A330-006-002 SAE Plug 1
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
