Product Overview

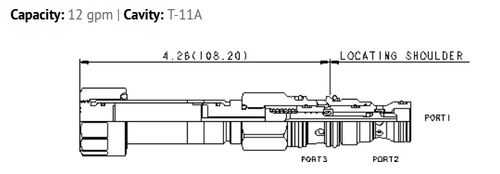

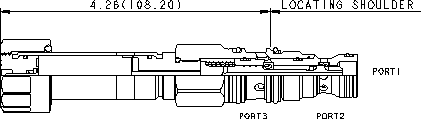

Cartridge
Description
This solenoid-operated 3-way, 2-position cartridge is a direct-acting, balanced spool directional valve.
The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
Spools B and R are closed in the transition between their two positions. This results in a higher performance limit at the expense of lower capacity. When used as pilot controls, where capacity is not a factor, the closed transition will provide faster and more consistent response times.
This valve is direct actuated and requires no minimum hydraulic pressure for operation.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids.
Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Specifications
Cavity T-11A
Series 1
Capacity 12 gpm
Maximum Operating Pressure 5000 psi
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.@3000 psi
Manual Override Force Requirement 5 lbs/1000 psi @ Port 1
Manual Override Stroke .10 in.
Response Time - Typical 50 ms
Switching Frequency 15,000 max. cycles/hr
Solenoid Tube Diameter .75 in.
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Model Weight 0.74 lb.
Seal kit - Cartridge Buna: 990411007
Seal kit - Cartridge EPDM: 990411014
Seal kit - Cartridge Viton: 990411006
Seal and nut kit - Coil Viton: 990770006
Features
On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
