Product Overview

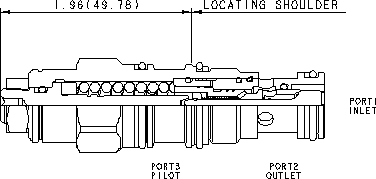

Cartridge
Description
This is a normally closed, balanced poppet, switching element. Pilot pressure at port 3 shifts the valve to the open position.
Unique balanced construction provides predictable switching with 5000 psi (350 bar) at both ports 1 and 2, with the external drain open and a minimum pilot pressure of 300 psi (20 bar).
Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
Any backpressure at the drain port is directly additive to the required pilot pressure for reliable operation.
Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
Specifications
Cavity T-24A
Series 4
Capacity 120 gpm
Maximum Operating Pressure 5000 psi
Minimum Pilot Pressure Required to Shift Valve 300 psi
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi
Pilot Volume Displacement .17 in³
Valve Hex Size 1 5/8 in.
Valve Installation Torque 350 - 375 lbf ft
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge EPDM: 990024014
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006
Model Weight 3.33 lb.
Features
Valve will reseat when the pilot pressure falls below 145 psi (10 bar).
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids.
Exposure to petroleum based fluids, greases and lubricants will damage the seals.
These valves are hydraulically balanced between port 1 and port 2.
All ports will accept 5000 psi (350 bar).
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
