Product Overview

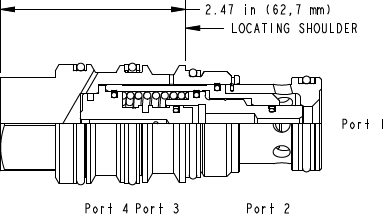

Cartridge
Description
This is a normally closed, balanced poppet, switching element. When the vent port (port 4) is blocked, the poppet remains in the closed position. Venting port 4 shifts it to the open position, provided there is sufficient pressure at port 3.
Port 1 and port 2 are fully sealed from port 3 and port 4. Ports 3 and 4 are positively sealed.
Leakage rate between port 1 and port 2 is very low, typically less than 10 drops/min. at 5000 psi (0,7 cc/min at 350 bar).
Valve will reseat when the pilot pressure falls below 145 psi (10 bar).
Specifications
Cavity T-23A
Series 3
Capacity 60 gpm
Maximum Operating Pressure 5000 psi
Minimum Pilot Pressure Required to Shift Valve 300 psi
Control Pilot Flow See Performance Data
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi
Valve Hex Size 1 1/4 in.
Valve Installation Torque 150 - 160 lbf ft
Model Weight 1.47 lb.
Seal kit - Cartridge Buna: 990023007
Seal kit - Cartridge Polyurethane: 990023002
Seal kit - Cartridge Viton: 990023006
Features
DKHR8
Normally closed, balanced poppet, logic element with integral T-8A control cavity - vent-to-open
