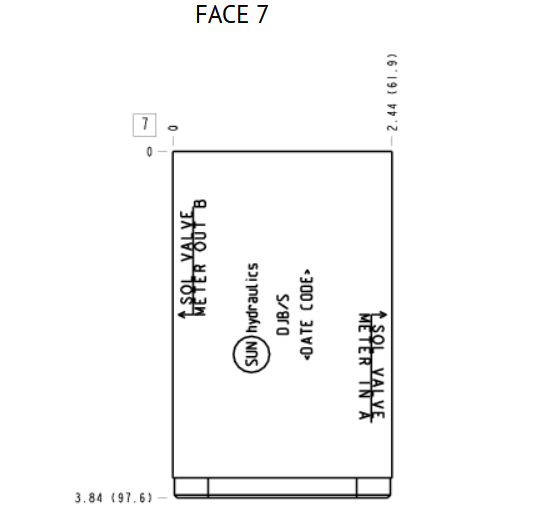

DJB/S (Manifold)

(No reviews yet) Write a Review
$274.40
SKU:
DJB/S
Data Sheet:
View Data Sheet

Product Overview

Manifold

Description

Flow into workport A or out of B
CAVITY: T-5A

Specifications

Body Type Sandwich
Interface ISO 05 - X&Y
Body Features Flow into workport A or out of B
Stack Height 2.49 in.
Seal Plate Included (see notes) No
Open Cavities 1
Cavity T-5A
Model Weight 4.96 lb.

Features

Stack height value in technical data table includes seal retainer plate.
This installation requires a retainer and seal kit which are purchased separately. See Related Accessories section.
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
