Product Overview

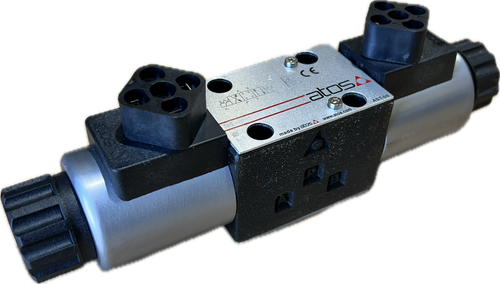

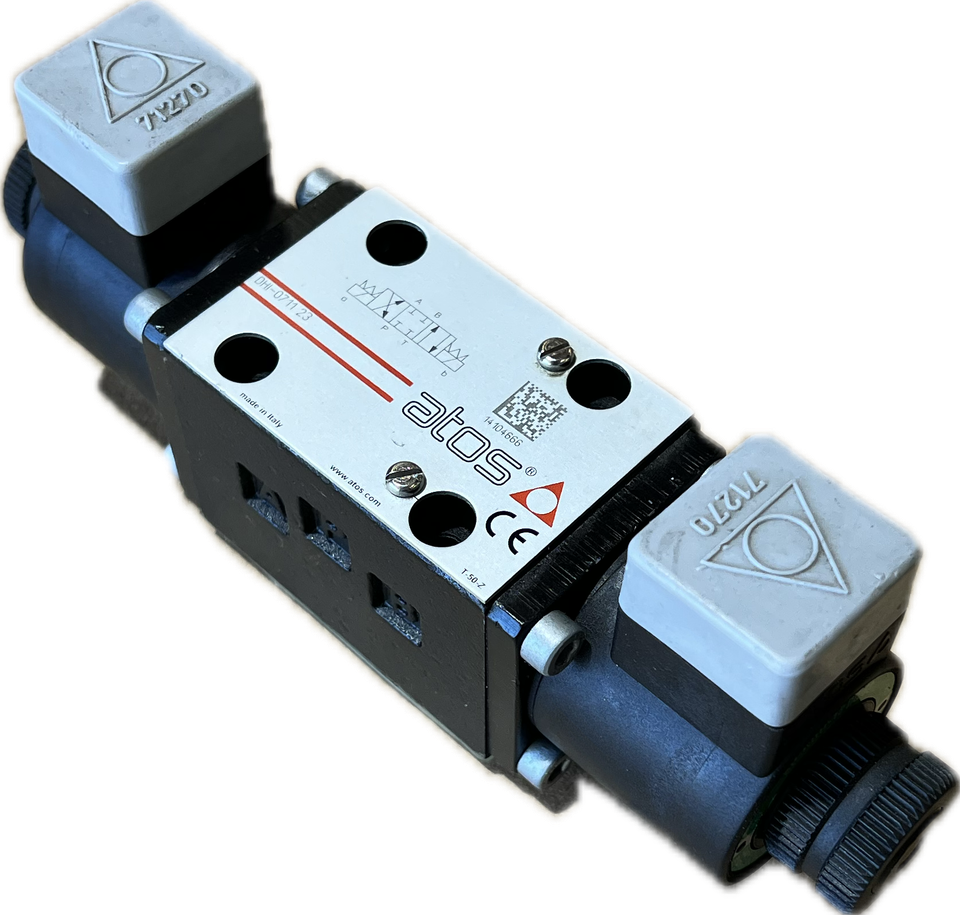

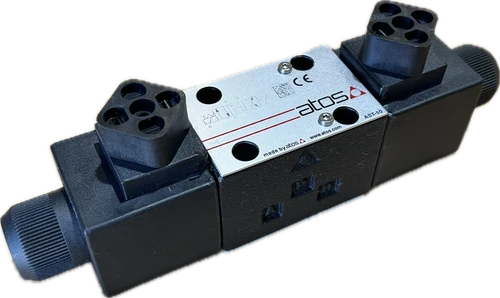

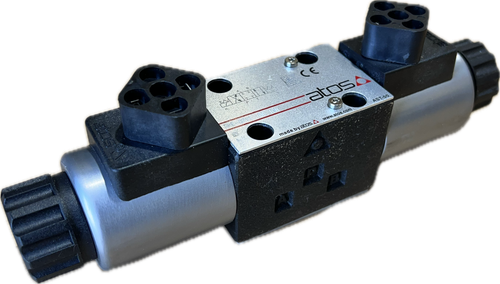

Directional Valve D03 15GPM 5000PSI
Description
Spool type, two or three position, directoperated valves with solenoids certifiedaccording the North American standardcURus.
Specifications
Mounting surface: ISO 4401 size 06
Max flow: 60 l/min
Max pressure: 350 bar
Features
Solenoids are made by:
• wet type flanged tube, same for AC andDC power supply, with integratedmanual override
• interchangeable coils, specific for AC orDC power supply, easily replaceablewithout tools
Standard coils protection IP65, optionalcoils with IP67 AMP Junior Timer, XKDeutsch or Lead Wire connections.Wide range of interchangeable spools.
The valve body is 3 chamber typemade by shell-moulding casting with wideinternal passages.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
