Product Overview
Cartridge
Description

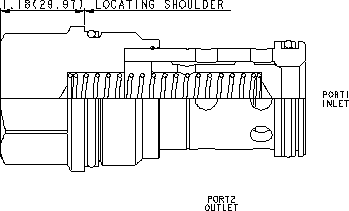

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction
Specifications
-Cavity T-18A
-Series 4
-Capacity 160 gpm
-Maximum Operating Pressure 5000 psi
-Maximum Valve Leakage at 110 SUS (24 cSt) 1 drops/min.
-Valve Hex Size 1 5/8 in.
-Valve Installation Torque 350 - 375 lbf ft
-Model Weight 2.04 lb.
-Seal kit - Cartridge Buna: 990018007
-Seal kit - Cartridge EPDM: 990018014
-Seal kit - Cartridge Polyurethane: 990018002
-Seal kit - Cartridge Viton: 990018006
Features
-Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
-Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
-Will accept 5000 psi (350 bar) at ports 1 and 2.
-Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
-Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
-Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
