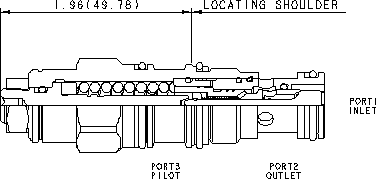

Cartridge
Description
3:1 Pilot Ratio, Standard Capacity Counterbalance Valve
Specifications
Cavity: T-11ASeries: 1Capacity: 15 gpmPilot Ratio: 3:1Maximum Recommended Load Pressure at Maximum Setting: 3075 psiMaximum Setting: 4000 psiPilot Configuration: Bleed throughFactory Pressure Settings Established at: 2 in³/min.Maximum Valve Leakage at Reseat: 5 drops/min.Adjustment - No. of CCW Turns from Min. to Max. Setting: 3.75Operating Characteristic: StandardReseat: >85% of settingValve Hex Size: 7/8 in.Valve Installation Torque: 30 - 35 lbf ftAdjustment Screw Internal Hex Size: 5/32 in.Locknut Hex Size: 9/16 in.Locknut Torque: 80 - 90 lbf in.Model Weight: 0.35 lb.Seal kit - Cartridge Buna: 990011007Seal kit - Cartridge EPDM: 990011014Seal kit - Cartridge Polyurethane: 990011002Seal kit - Cartridge Viton: 990011006
Features
-Sun counterbalance cartridges can be installed directly into a cavity machined in an actuator housing for added protection and improved stiffness in the circuit.
-Two check valve cracking pressures are available. Use the 25 psi (1,7 bar) check unless actuator cavitation is a concern.
-All 3-port counterbalance, load control, and pilot-to-open check cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size)
.-Corrosion-resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
-Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
