Product Overview
Accessory
Description
Sun offers replacement seal kits for all cartridge models. These kits include all of the external seals on the cartridge along with installation instructions. Seal kits are available in Buna-N and Viton for all models, along with EPDM and polyurethane for many models. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Specifications
Series 1
Cartridge Series 1
Cartridge Thread M20
Valve Hex Size 7/8 in.
Valve Installation Torque 30 - 35 lbf ft
Cavity T-11A
Features

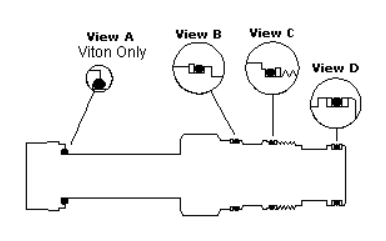

500-101-116 O-Ring 1 A
500-102-017 O-Ring 2 B,C
500-151-590 O-Ring 1 D
515-102-016 Backup Ring 1 C
515-102-017 Backup Ring 1 B
515-152-601 Backup Ring 2 D
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
